Specifications for Harken 60 3-Speed S/T Radial Bronze Winch
| Cordage recommandé – Ø Max (mm) | 16 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Taille | 60 |
| Style | Self-Tailing |
| Matériau | Bronze |
| Diamètre de l'embase | 236 |
| Ø tourelle (mm) | 120 |
| Hauteur (mm) | 253 |
| Hauteur d’entrée du cordage (mm) | 116 |
| Vitesse (manuelle) | 3 vitesses |
| Charge de travail (kg) | 1800 |

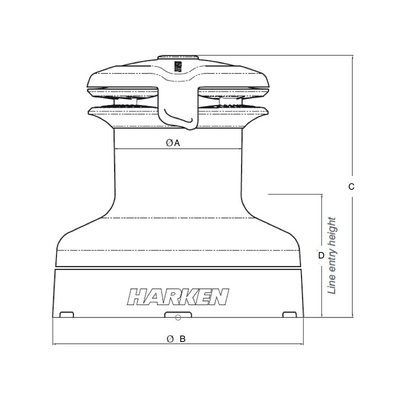

| A (mm) | 120 |
| B (mm) | 236 |
| C (mm) | 253 |
| D (mm) | 116 |
| Vitesse 1 (X : 1) | 2,2 |
| Vitesse 2 (X : 1) | 4,8 |
| Vitesse 3 (X : 1) | 14,4 |
| Puissance 1 (X : 1) | 9,2 |
| Puissance 2 (X : 1) | 20,3 |
| Puissance 3 (X : 1) | 61 |
| Poids (g) | 16900 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Harken's all-bronze finish enhances your yacht’s classic look, while providing the low-friction pulling power of Harken’s gearing systems.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Cordage recommandé – Ø Max (mm) | 16 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Taille | 60 |
| Style | Self-Tailing |
| Matériau | Bronze |
| Diamètre de l'embase | 236 |
| Ø tourelle (mm) | 120 |
| Hauteur (mm) | 253 |
| Hauteur d’entrée du cordage (mm) | 116 |
| Vitesse (manuelle) | 3 vitesses |
| Charge de travail (kg) | 1800 |
| A (mm) | 120 |
| B (mm) | 236 |
| C (mm) | 253 |
| D (mm) | 116 |
| Vitesse 1 (X : 1) | 2,2 |
| Vitesse 2 (X : 1) | 4,8 |
| Vitesse 3 (X : 1) | 14,4 |
| Puissance 1 (X : 1) | 9,2 |
| Puissance 2 (X : 1) | 20,3 |
| Puissance 3 (X : 1) | 61 |
| Poids (g) | 16900 |
