Bamar Foil section BMG30R - 1.5m

https://www.upffront.com/web/image/product.template/5262/image_1920?unique=f03ba94

53,04 53.04 USD 55,83

49,67 €

5% Off

Available on request

Jours
:
Heures
:
Minutes
:
Secs
  • Marque
  • Ø du profil (mm)
  • Longueur de profil (mm)
  • Ralingue (mm)
  • Ø cable max (mm)
  • Poids de profil (g/m)
  • A (mm)
  • B (mm)
  • C (mm)
  • D (mm)
  • E (mm)
  • Nbr de gorge (Simple/Double)
  • Ø max de la tige en Rod (mm)
  • Poids (g)

Cette combinaison n'existe pas.

Product Image

Bamar Foil section BMG30R - 1.5m

55,83 53,04
5% Off
SKU:
N/A
Brand: Bamar
Shipping Info

Garantie de remboursement de 30 jours

 Retours sous 14 jours

 Expédition express disponible

Share :

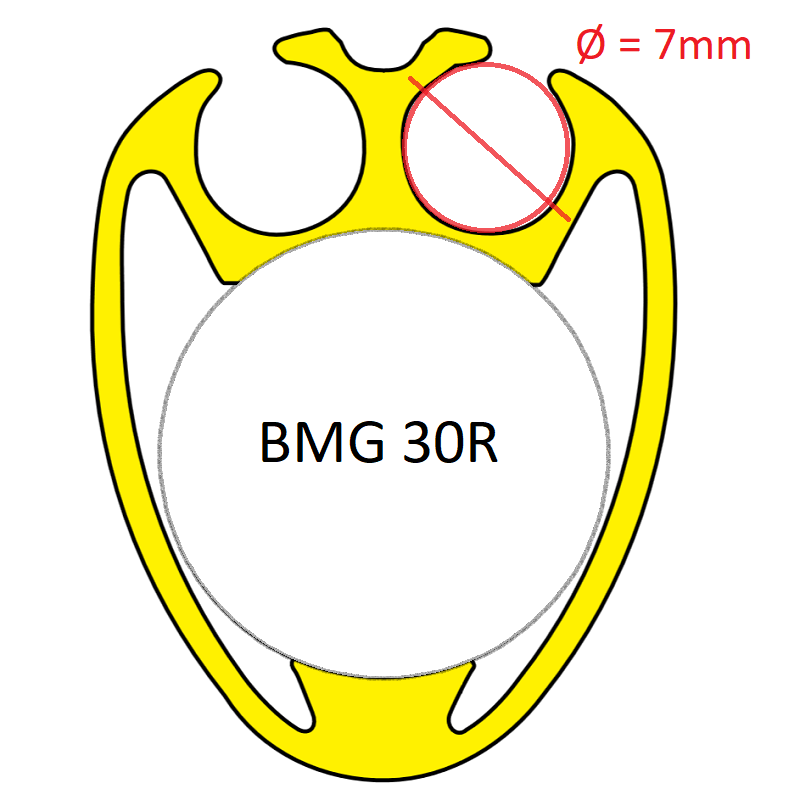

The Bamar BMG 30R twin groove foil sections can be fitted on C0, C0T and C1 models. They are made of durable extruded aluminium alloy and their oval section offers high aerodynamic performance. The connection between two foils sections is made through an aluminium splice piece that is inserted inside the foils to ensure a perfect alignment. Each standard furler set has foil sections included, but these 1.5m long sections can be purchased individually for additional forestay length or as spares / replacements.

Spécifications

Ø du profil (mm) 23
Longueur de profil (mm) 1500
Ralingue (mm) 5
Ø cable max (mm) 7
Poids de profil (g/m) 660

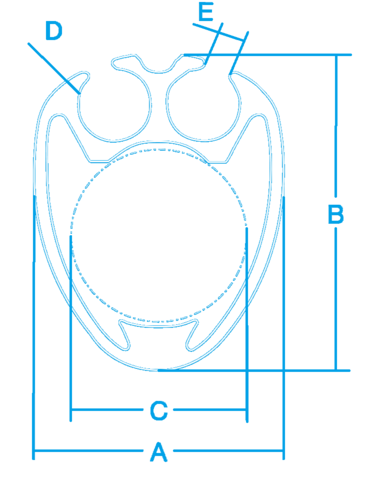

A (mm) 23
B (mm) 30
C (mm) 16
D (mm) 7
E (mm) 3,5
Nbr de gorge (Simple/Double) D
Ø max de la tige en Rod (mm) 6,4
Poids (g) 990
