Specifications for Antal Removable Pad Eye - 16mm
| Fixing hole Ø (mm) | 10 |
| Style | Removable |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Hauteur (mm) | 56 |
| Charge de travail (kg) | 6500 |
| B (mm) | 30 |
| C (mm) | 42 |
| D (mm) | 84 |
| d (mm) | 16 |
| E (mm) | 92 |
| F (mm) | 120 |
| Poids (g) | 2200 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

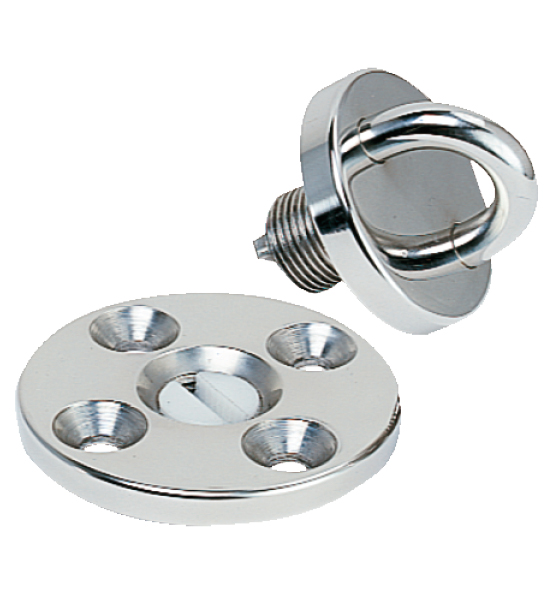

Antal Removable Pad Eye – 16mm
The Antal Removable Pad Eye – 16mm is a heavy-duty solution offering the strength of a fixed padeye with the flexibility of removability. Built from 316 stainless steel, it provides a Safe Working Load (SWL) of 6,500 kg, ensuring reliable performance in the toughest conditions.
It uses Antal’s two-part system, comprising a recessed socket and a detachable padeye. When removed, the deck remains flush, safe, and uncluttered.
Compared to the Standard Padeye, the removable option is especially valuable for large yachts where deck space, safety, and adaptability are critical.
Features:
- 16mm removable padeye, SWL 6,500 kg
- Marine-grade stainless steel
- Flush deck socket with removable padeye insert
- Same SWL as equivalent fixed padeye
- Maintains a safe, snag-free deck when removed
Applications:
- Heavy-duty block and rigging attachments
- Large yacht deck layouts requiring temporary fittings
- High-performance installations with safety and flexibility demands
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Fixing hole Ø (mm) | 10 |
| Style | Removable |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Hauteur (mm) | 56 |
| Charge de travail (kg) | 6500 |
| B (mm) | 30 |
| C (mm) | 42 |
| D (mm) | 84 |
| d (mm) | 16 |
| E (mm) | 92 |
| F (mm) | 120 |
| Poids (g) | 2200 |
