Specifications for Antal Removable Pad Eye - 14mm
| Fixing hole Ø (mm) | 10 |
| Style | Removable |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Hauteur (mm) | 38 |
| Charge de travail (kg) | 4600 |
| B (mm) | 24 |
| C (mm) | 32 |
| D (mm) | 78 |
| d (mm) | 14 |
| E (mm) | 64 |
| F (mm) | 90 |
| Poids (g) | 1090 |
Antal Removable Pad Eye – 14mm
The Antal Removable Pad Eye – 14mm is engineered for demanding yacht applications, combining high strength with a removable design. Constructed from 316 stainless steel, it offers a Safe Working Load (SWL) of 4,600 kg, making it suitable for heavy-duty use on large sailing yachts.

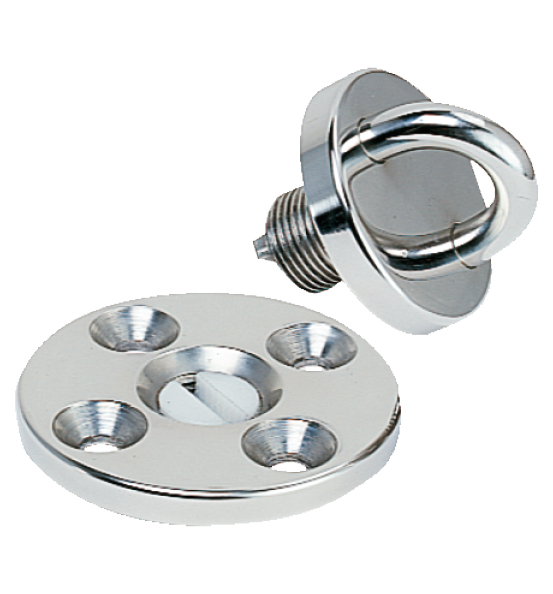

The two-part system uses a recessed deck socket with a detachable padeye insert. The padeye can be installed when needed or removed in seconds, leaving only the flush socket for a clean, snag-free deck.
This design offers the same strength as the Standard Padeye while adding the ability to reduce clutter and improve safety on deck.
Features:
- 14mm removable padeye, SWL 4,600 kg
- Made from corrosion-resistant 316 stainless steel
- Two-part removable design with flush deck socket
- Same load rating as the fixed version
- Eliminates protrusions when padeye is not required
Applications:
- Large yacht block and rigging points
- Temporary lashings or tie-downs
- Racing yachts where deck fittings need to be repositioned or removed
Spécifications
| Fixing hole Ø (mm) | 10 |
| Style | Removable |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Hauteur (mm) | 38 |
| Charge de travail (kg) | 4600 |
| B (mm) | 24 |
| C (mm) | 32 |
| D (mm) | 78 |
| d (mm) | 14 |
| E (mm) | 64 |
| F (mm) | 90 |
| Poids (g) | 1090 |
