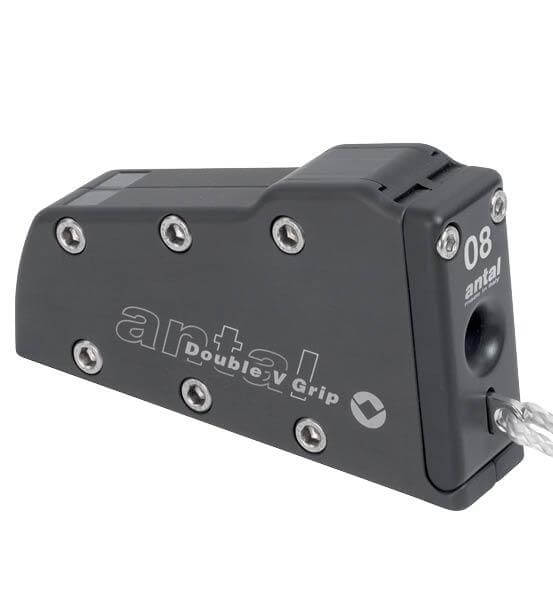

Antal DV Jammer For 8mm Lines Remote Control
The Antal DV Jammer For 8mm Lines Remote Control is a compact, high-performance jammer designed for smaller-diameter, high-load ropes where manual access isn’t practical. Replacing the standard manual slider with a control line actuator, this version allows the jammer to be locked and released remotely — an ideal setup for mast-mounted halyard jammers.
With Antal’s patented Double V-Grip system, it grips the rope evenly on all sides, dramatically reducing localised cover wear while ensuring dependable holding power. This makes it highly effective with modern Dyneema®-based ropes as well as traditional polyester double braids.
Key Features
- Remote operation – Replaces the manual slider with a control line for safe, reliable actuation at a distance.
- Double V-Grip mechanism – Opposing V-shaped wedges apply a four-sided grip that tightens automatically as load increases.
- Safe Working Load (SWL) – Rated to 1,500 kg, providing secure holding power for halyards and control lines.
- Line compatibility – Optimised for 8 mm lines, making it ideal for lightweight but highly loaded rope systems.
- Durable construction – Built from marine-grade alloys and stainless steel for strength and corrosion resistance.
- Smooth handling – Remote release always carried out in conjunction with a winch for maximum safety.
Applications
Perfect for halyards and control lines on performance cruisers and racing yachts, the 8 mm Remote-Control DV Jammer is especially suited to mast-mounted installations where space and accessibility are limited.
Alternatives
- DV Jammer Standard version – deck-mounted with manual slider control.
- DV Jammer Side-Mount version – mast or bulkhead mounting with manual slider control.
Specifications
| Width (mm) | 34 |
| Fixing hole Ø (mm) | 8 |
| Number of fixing holes | 4 |
| Length (mm) | 126 |
| Recommended line - Max Ø (mm) | 8 |
| Recommended line - Min Ø (mm) | 8 |
| Height (mm) | 86 |
| SWL (kg) | 1500 |
| Weight (g) | 600 |
