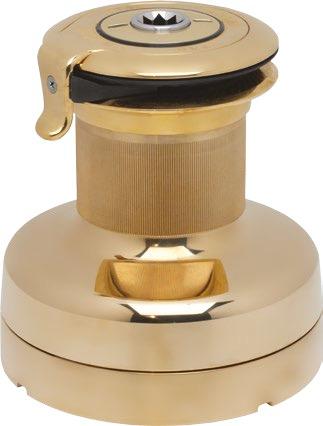

Specifications for Antal 66 3-Speed Self-Tailing Bronze Classic Winch
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Size | 66 |
| Style | Self-Tailing |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 151 |
| Line recovery per rotation - 2nd gear (mm) | 77 |
| Line recovery per rotation - 3rd gear (mm) | 24 |
| Base Ø (mm) | 248 |
| Drum Ø (mm) | 144 |
| Height (mm) | 293 |
| Gears (Manual) | 3-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 3.1 |
| Gear ratio 2 (X : 1) | 6 |
| Gear ratio 3 (X : 1) | 18.8 |
| Power ratio 1 (X : 1) | 10.7 |
| Power ratio 2 (X : 1) | 20.8 |
| Power ratio 3 (X : 1) | 65.3 |
| Weight (g) | 31240 |
Three Reduced Speed Classic Series Winch
The push-button on the base starts the first gear (the fastest); second and third gear are automatically selected simply by reversing the rotation of the handle.
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Classic series winches (BNC) are supplied not only with a bronze drum, ST disks and ST arm, as the bronze series models (BN), but also with a bronze lower skirt, thus being completely bronze.
Specifications
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Size | 66 |
| Style | Self-Tailing |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 151 |
| Line recovery per rotation - 2nd gear (mm) | 77 |
| Line recovery per rotation - 3rd gear (mm) | 24 |
| Base Ø (mm) | 248 |
| Drum Ø (mm) | 144 |
| Height (mm) | 293 |
| Gears (Manual) | 3-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 3.1 |
| Gear ratio 2 (X : 1) | 6 |
| Gear ratio 3 (X : 1) | 18.8 |
| Power ratio 1 (X : 1) | 10.7 |
| Power ratio 2 (X : 1) | 20.8 |
| Power ratio 3 (X : 1) | 65.3 |
| Weight (g) | 31240 |
