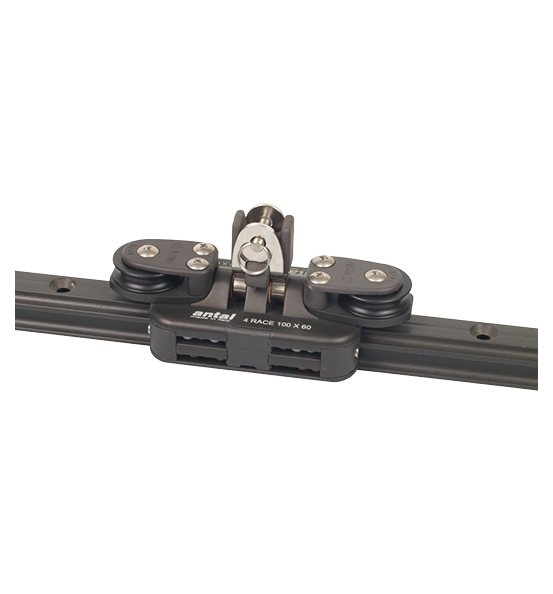

Antal 4Race 100 Traveller Car – 2:1 Control (Part No. 4102)
The Antal 4Race 100 Traveller Car – 2:1 Control is designed for use with the Antal 4Race 100 (26x20mm) traveller track, providing smooth and responsive movement as part of a dedicated 2:1 control system. When paired with the 4263 End Fitting (2:1 Purchase) and 4266 Cam Cleat, it delivers a compact and efficient solution ideal for sportboats and performance keelboats.
This free-running car features four independent ball bearing circuits—two Torlon® (lower) and two Delrin® (upper)—ensuring excellent load capacity and smooth operation. Side access windows make maintenance of the ball bearings quick and easy.
The car is specifically designed for seamless integration with the Antal OPF Single Block 006.01 (not included), enabling a clean, low-profile connection between the traveller and the mainsheet or control block system.
Please note: In a 2:1 setup, control line termination is located on the 4263 End Fitting via an integrated becket—the car itself does not include a termination point.
Key Features:
- Designed for Antal 4Race 100 (26x20mm) track
- Optimised for 2:1 purchase traveller systems
- Compatible with OPF Single Block 006.01 (not included)
- Pairs with Antal 4263 End Fitting and 4266 Cam Cleat
- Free-running design – no integrated pin stop
- Four ball bearing circuits: 2 Torlon® (lower), 2 Delrin® (upper)
- Side windows for bearing inspection and maintenance
- Lightweight, hard anodised aluminium construction
Specifications
| Width (mm) | 62 |
| Length (mm) | 100 |
| Total length (mm) | 140 |
| Sheave Ø (mm) | 35 |
| SWL (kg) | 820 |
| Weight (g) | 230 |
