Antal 4Race 100 One Sheave End Fitting – Part No. 4262

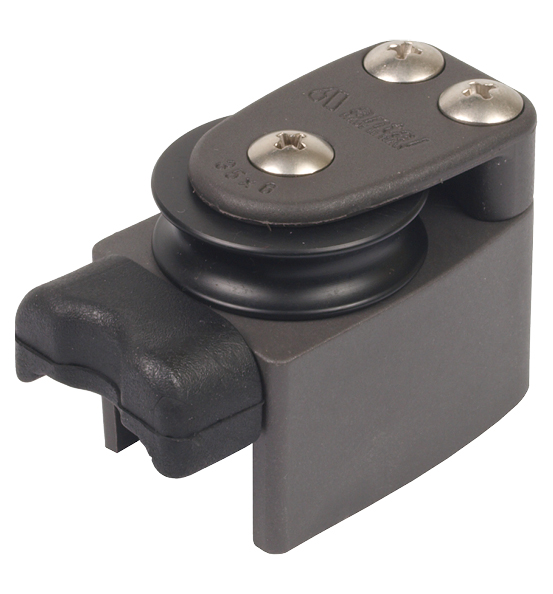

The Antal 4Race 100 One Sheave End Fitting is a control end designed specifically for use with the Antal 4Race 100 traveller track system. It features a single integrated sheave for setting up a 1:1 purchase control line—ideal for simple, direct adjustment of the traveller car on smaller performance yachts or applications with limited space.
The compact aluminium body is engineered for strength and durability, and is pre-drilled to accept the Antal 4Race 100 Cam Cleat (Part No. 4266), offering a clean and functional solution for traveller control.
Key Features:
- Compatible with Antal 4Race 100 traveller track
- Integrated single sheave for 1:1 purchase setup
- Accepts Antal 4Race 100 Cam Cleat (sold separately)
- Hard anodised aluminium construction
- Compact and efficient design for minimal deck clutter
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Width (mm) | 35 |
| Fixing hole Ø (mm) | 5 |
| Number of fixing holes | 3 |
| Length (mm) | 50 |
| Sheave Ø (mm) | 35 |
| Height (mm) | 49 |
| Weight (g) | 80 |
