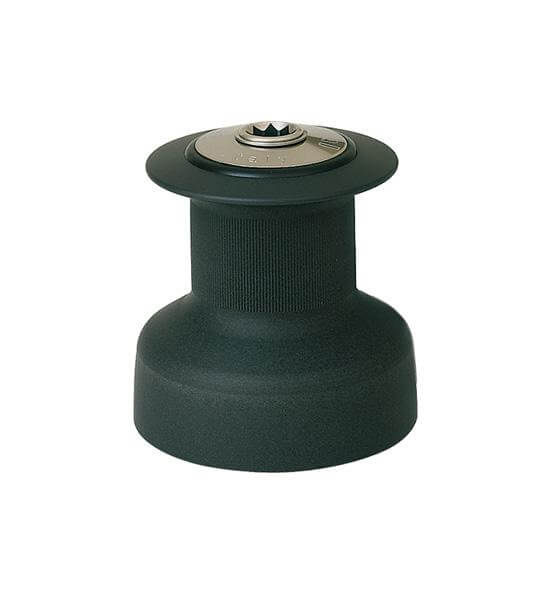

Specifications for Antal 16 2-Speed Plain-Top Aluminium Winch
| Taille | 16 |
| Style | Plain-Top |
| Matériau | Aluminum |
| Line recovery per rotation - 1st gear (mm) | 220 |
| Line recovery per rotation - 2nd gear (mm) | 110 |
| Diamètre de l'embase | 110 |
| Ø tourelle (mm) | 71 |
| Hauteur (mm) | 106 |
| Vitesse (manuelle) | 2 vitesses |
| Garantie (année) | 3 |
| Vitesse 1 (X : 1) | 1 |
| Vitesse 2 (X : 1) | 2,1 |
| Puissance 1 (X : 1) | 7,3 |
| Puissance 2 (X : 1) | 14,5 |
| Poids (g) | 2000 |
Two Speed Winch: Direct, Reduced
The first speed is direct (one turn of the drum for each turn of the handle); the second speed is reduced: slower but more powerful. Bronze base and gears, AISI 316 stainless steel central rod and roller bearings. Medium size models for boats up to 9-10 m. Available in black anodized aluminium (AL) or chrome-plated (CH) drums
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.
Spécifications
| Taille | 16 |
| Style | Plain-Top |
| Matériau | Aluminum |
| Line recovery per rotation - 1st gear (mm) | 220 |
| Line recovery per rotation - 2nd gear (mm) | 110 |
| Diamètre de l'embase | 110 |
| Ø tourelle (mm) | 71 |
| Hauteur (mm) | 106 |
| Vitesse (manuelle) | 2 vitesses |
| Garantie (année) | 3 |
| Vitesse 1 (X : 1) | 1 |
| Vitesse 2 (X : 1) | 2,1 |
| Puissance 1 (X : 1) | 7,3 |
| Puissance 2 (X : 1) | 14,5 |
| Poids (g) | 2000 |
