Specifications for Wichard Self-locking large shackle - Dia 10 mm
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Ø axe (mm) | 10 |
| Charge de travail (kg) | 1280 |
| Charge de rupture (kg) | 4000 |
| A (mm) | 72 |
| B (mm) | 40 |
| C (mm) | 10 |
| D (mm) | 21 |
| E (mm) | 10 |
| G (mm) | 71 |
| Poids (g) | 127 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

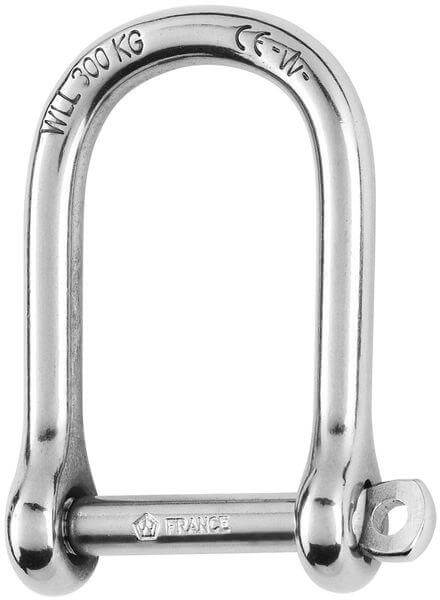

Self-locking large shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
For applications where a large opening shackle is required
