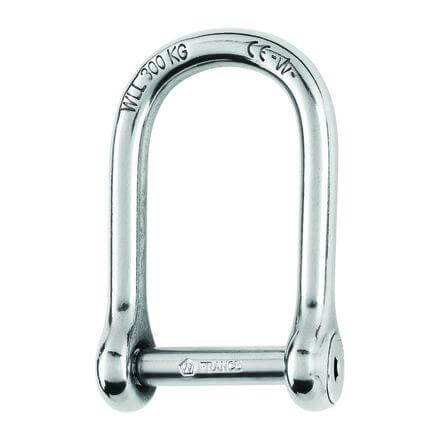

Specifications for Wichard D shackle - Dia 6 mm - large size
| Material | Edelstahl |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 6 |
| SWL (kg) | 320 |
| NBL (kg) | 1500 |
| A (mm) | 42 |
| B (mm) | 25,5 |
| C (mm) | 6 |
| D (mm) | 14 |
| E (mm) | 6 |
| F (mm) | 58 |
| G (mm) | 38 |
| Gewicht (g) | 44 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Self-locking shackle with allen head pin D forged in grade 316L stainless steel
The pin is locked into one of the indentations
The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
No risks of loose due to vibrations
Outstanding working and breaking loads
Applications
Ideal to link chain and anchor
On the halyard, avoids damage to the sails
can be used with batten cars
Can be used to reduce clutter
