Specifications for Wichard Captive pin long D shackle - Dia 6 mm
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Ø axe (mm) | 7 |
| Charge de travail (kg) | 680 |
| Charge de rupture (kg) | 2200 |

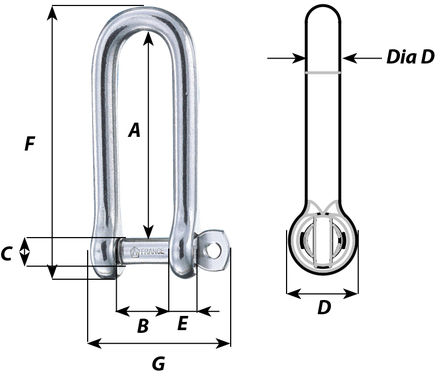

| A (mm) | 46 |
| B (mm) | 12 |
| C (mm) | 7 |
| D (mm) | 14 |
| E (mm) | 6 |
| F (mm) | 63 |
| G (mm) | 32 |
| Poids (g) | 40 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

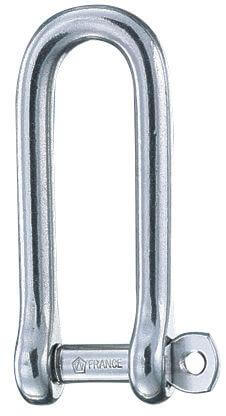

Captive pin long "D" shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Applications
Standard applications of shackle requiring more length
Attachment applications: blocks, head …
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Ø axe (mm) | 7 |
| Charge de travail (kg) | 680 |
| Charge de rupture (kg) | 2200 |
| A (mm) | 46 |
| B (mm) | 12 |
| C (mm) | 7 |
| D (mm) | 14 |
| E (mm) | 6 |
| F (mm) | 63 |
| G (mm) | 32 |
| Poids (g) | 40 |
