Specifications for Ronstan Snap Shackle Trunnion Small Bale 70mm
| Total length (mm) | 70 |
| Style | Swivel Bail (Small) |
| Material | Stainless Steel |
| Material Grade | 15-5PH SS |
| Pin Ø (mm) | 10 |
| SWL (kg) | 750 |
| NBL (kg) | 1500 |

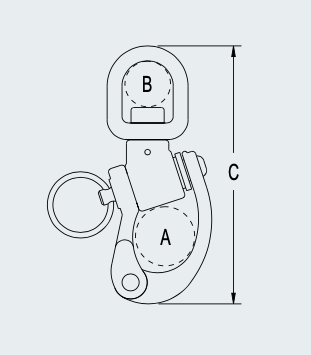

| A (mm) | 16 |
| B (mm) | 10 |
| C (mm) | 70 |
| Weight (g) | 57 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

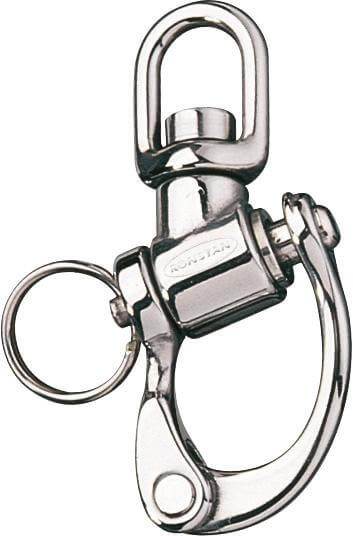

Ronstan Snap Shackle Trunnion Small Bale 70mm
- Trunnion swivel head allows both 360° rotation and sided to side articulation.
- Small and large bail versions.
- Grade 15-5PH investment cast stainless steel body and hasp.
- Stainless steel plunger pin and spring.
