Specifications for MORFRAC morfring Ø 40 mm - Low friction ring
| Total width (mm) | 18 |
| Recommended line - Max Ø (mm) | 12 |
| Inside Ø (mm) | 16 |
| Outside Ø (mm) | 40 |
| Outside line max Ø (mm) | 12 |
| SWL (kg) | 1725 |
| NBL (kg) | 3450 |
| A (mm) | 40 |
| B (mm) | 16 |
| C (mm) | 18 |
| Weight (g) | 19 |

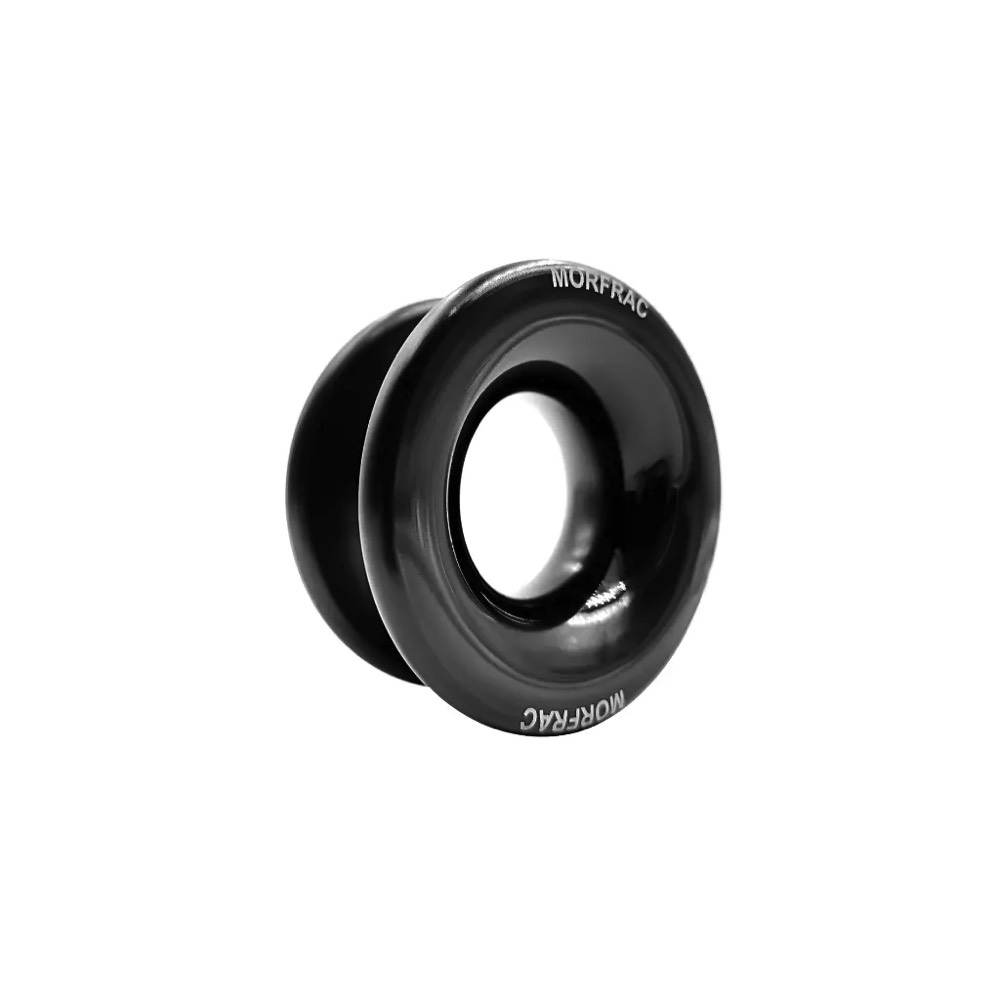

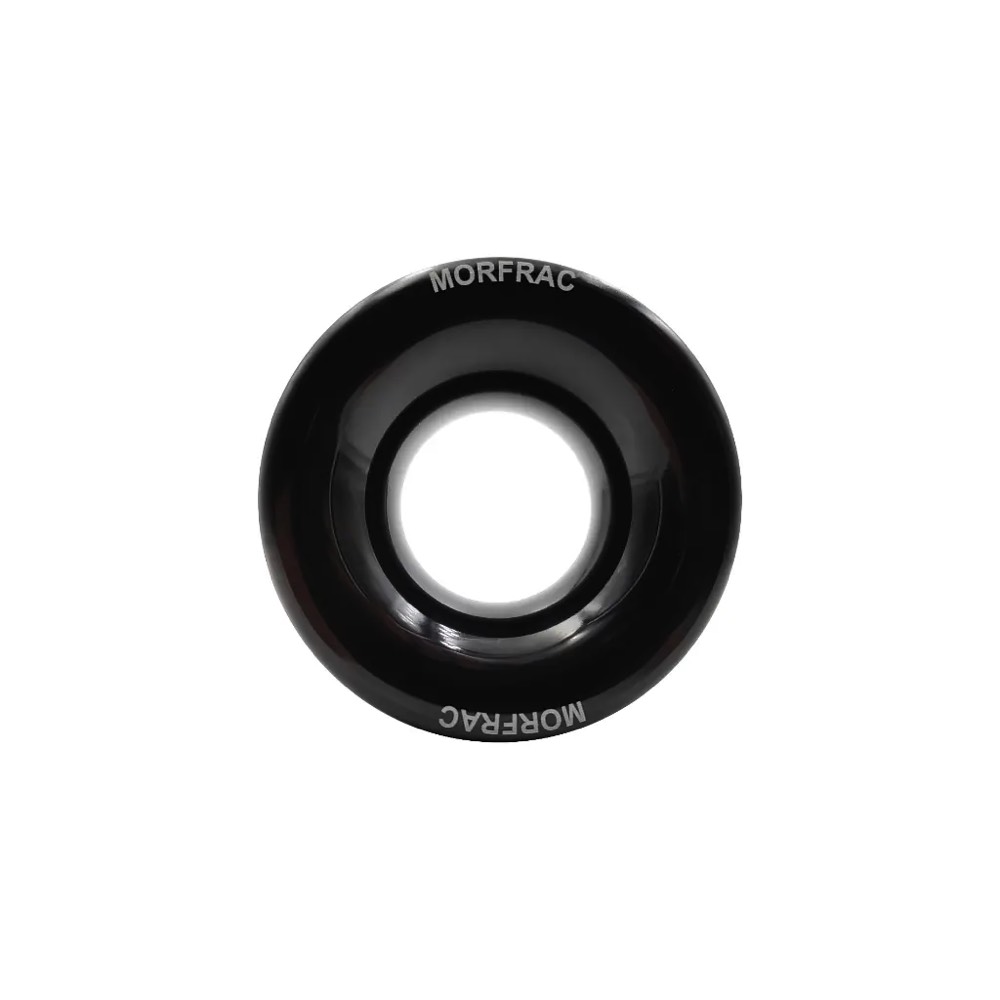

MORFRAC morfring Ø 40 mm – Low Friction Ring
Strong, smooth, and endlessly adaptable. The MORFRAC morfring Ø 40 mm is a high-performance friction thimble designed for more demanding line-handling tasks, offering the ideal combination of strength, simplicity, and minimal friction. Built with Morfrac’s renowned hard anodised finish, this ring delivers exceptional surface smoothness, reducing drag and line wear in both static and running line applications.
With its 40 mm outer diameter and compatibility for lines up to 12mm, it’s perfectly suited to medium-load deflection points, inboard systems, or soft shackle terminations where a conventional block may be overkill.
Key Features:
- Hard Anodised Aluminium: Precision-machined and treated with Morfrac’s high-spec anodising process, creating a silky-smooth, ultra-durable surface.
- 12mm Line Capacity: Accommodates medium-sized ropes for halyard deflectors, barber haulers, lazy jacks, and tensioning systems.
- Safe Working Load: Rated for up to 1,725 kg, offering serious strength for a wide range of semi-dynamic and static load scenarios.
- Lightweight and Compact: Weighs significantly less than equivalent pulley blocks, making it an excellent choice for performance-oriented rigging.
- Minimal Maintenance: No moving parts to seize or service—just reliable, consistent performance season after season.
- Versatile Rigging Tool: Ideal for soft shackles, in-line tensioners, backstay systems, and more—great for both racing and cruising setups.
The morfing Ø 40 mm is a superb upgrade for sailors looking to streamline their deck gear without compromising strength or efficiency—a truly modern friction ring with traditional simplicity.
Specifications
| Total width (mm) | 18 |
| Recommended line - Max Ø (mm) | 12 |
| Inside Ø (mm) | 16 |
| Outside Ø (mm) | 40 |
| Outside line max Ø (mm) | 12 |
| SWL (kg) | 1725 |
| NBL (kg) | 3450 |
| A (mm) | 40 |
| B (mm) | 16 |
| C (mm) | 18 |
| Weight (g) | 19 |
