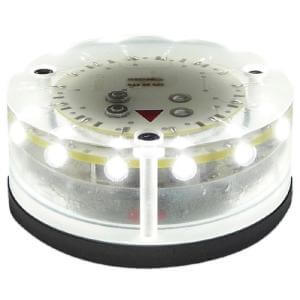

Mantagua RACING 2 NM Masthead Light – Horizontal (White 225°)
The Mantagua RACING Range is designed for serious performance yachts, combining ultra-lightweight construction, exceptional efficiency, and uncompromising reliability. Developed for competitive offshore and inshore sailing, these lights meet COLREG requirements for vessels under 20 metres, while maintaining the low weight and aerodynamic form demanded by race boats.
The RACING 2 NM Masthead Light emits a 225° forward-facing white beam with a 2 nautical mile visibility range, providing full compliance for power-driven or sailing vessels under motor. Its horizontal mounting configuration offers a clean, aerodynamic profile for easy installation on masts or spreader brackets, keeping drag to a minimum.
Each Mantagua RACING light integrates two independent LED plates and separate power feeds, delivering redundancy in line with offshore racing standards — ensuring that navigation lights remain operational even if one circuit fails. The compact body is fully resin-sealed, providing total waterproofing, vibration resistance, and impact protection for the harshest marine environments.
Built to IP67 waterproof and UV-resistant standards, this masthead light offers long-term durability while consuming just 1.6 W. It operates on 9–30 VDC and is fully VHF/AIS compatible, preventing interference with critical onboard electronics.
Key features:
- Horizontal-mount LED masthead light for racing yachts
- White 225° beam, 2 NM visibility (COLREG compliant)
- Dual LED plates with separate power feeds for redundancy and race compliance
- Ultra-lightweight and aerodynamic design for performance installations
- Fully resin-sealed housing – waterproof, vibration-proof, and shock-resistant
- IP67 waterproof, UV and impact resistant
- Operating voltage: 9–30 VDC
- VHF/AIS friendly – no interference with onboard systems
- Low power draw (1.6 W) – ideal for energy-efficient race yachts
Spécifications
| Beam angle (degrees) | 225 |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 1,6 |
| Ø Extérieur (mm) | 70 |
| Tension de fonctionnement | 9-30 |
| Matériau | Aluminium & Epoxy resin |
| Hauteur (mm) | 39 |
| Garantie (année) | 2 |
| Résistant à l'eau | IP67 |
| Poids (g) | 230 |
