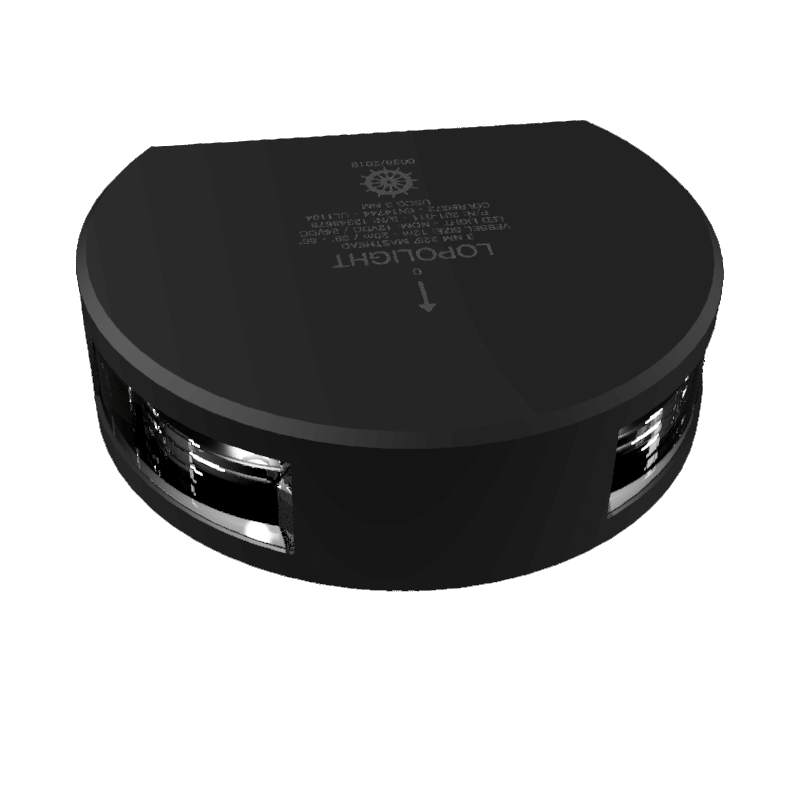

Lopolight 2NM 225° Masthead Light – Vertical Mount, 15m Cable (Black Anodised)
[For vessels under 12m – LED navigation light]
The Lopolight 2NM Masthead Light with 15-metre cable is designed for vessels under 12 metres requiring extended cable length for tall rigs or complex cable routing. Emitting a 225° white beam visible to 2 nautical miles, it ensures clear forward visibility in compliance with international navigation light standards.
Constructed from durable black anodised aluminium, the housing is corrosion-resistant and built for marine environments. This vertical-mount model is ideal for mast or superstructure installations where a slim, compact profile is needed. Rated IP68, its epoxy-sealed electronics provide long-term protection from saltwater, vibration, and UV exposure.
Key Features:
- Suitable for vessels under 12 metres
- 225° white beam, visible to 2NM
- Vertical mount – ideal for mast or superstructure installations
- Available in Black anodised aluminium housing only
- IP68 sealed with epoxy-filled electronics for marine durability
- Supplied with 15m marine-grade cable for extended routing
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
-
Alternative versions available:
- Vertical mount model with 0.7m cable (Silver or Black anodised)
- Horizontal mount models in Silver or Black anodised aluminium
Spezifikationen
| Connection | 15m cable |
| Dimensions (mm) | 74,55 x 28 x 73,16 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 137 |
| Current draw (mA @ 24VDC) | 80 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Power supply type | dc. |
| Sichtweite (NM) | 2 |
| Leistung (W) | 2 |
| Spannung unter Betrieb | 10-32 |
| Material | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Wasserdichtigkeit | IP68 |
| Gewicht (g) | 2000 |
