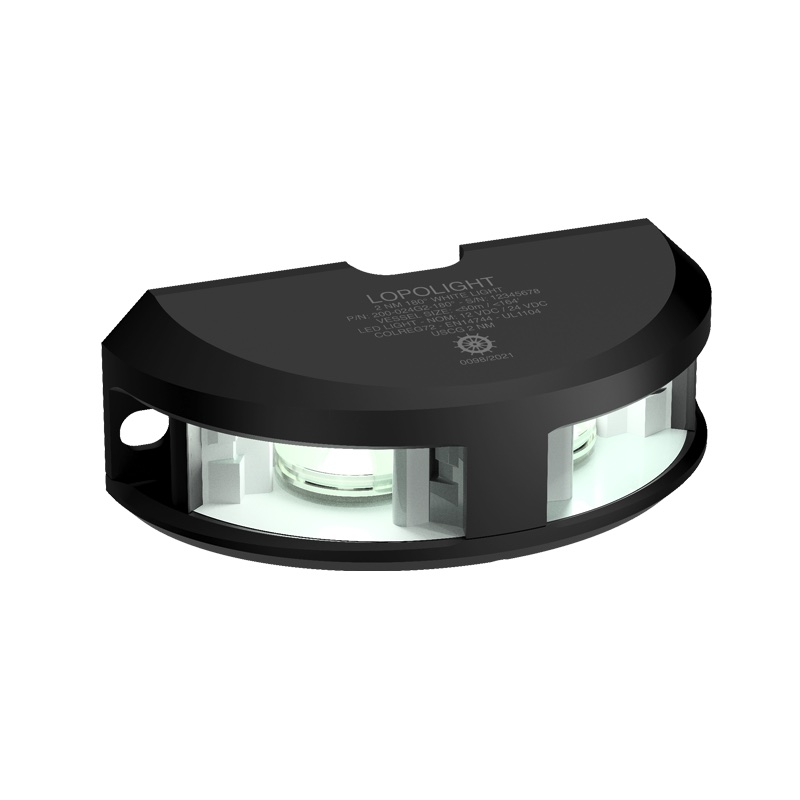

Lopolight 2NM 180° White Light – Vertical Mount, 0.7m Cable (Silver or Black Anodised)
[Specialist sector light – For vessels under 20m or signalling applications]
The Lopolight 2NM 180° White Light is a precision LED sector light designed for specialist navigation or signalling applications. Emitting a sharp 180° white beam visible to 2 nautical miles, it is commonly used in restricted manoeuvring light configurations or other custom signalling systems, rather than as a standard leisure navigation light.
Built from anodised aluminium in Silver or Black finishes, the vertical-mount housing is compact, corrosion-resistant, and rugged. Rated IP68, the epoxy-filled electronics are fully sealed against saltwater, UV, and vibration.
Supplied with a 0.7-metre marine-grade cable, this model is suited for installations where only short cable runs are required.
Key Features
- Designed for specialist applications such as restricted manoeuvring or custom signalling

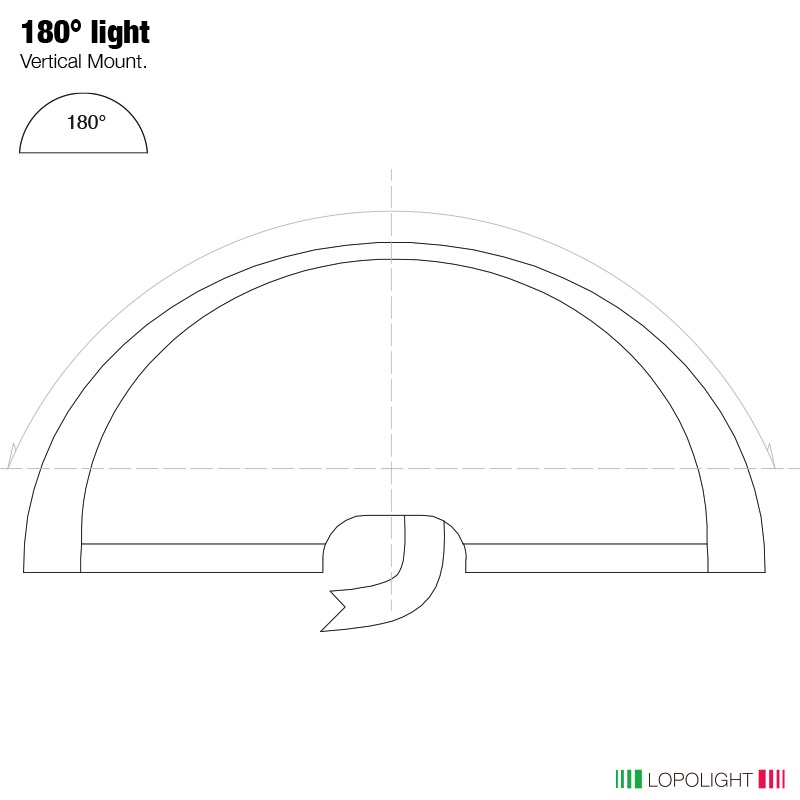

- Emits a 180° white beam, visible to 2NM
- Vertical mount – compact for mast or superstructure fitting
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine reliability
- Supplied with 0.7m marine-grade cable
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72 when used in correct light configurations
- Alternative versions available with 6m or 20m cable (Silver or Black anodised)
Specifications
| Boat size (m) | 20-50M or 12-20M or Under 12M |
| Colour* | Black or Silver |
| Connection | 0.7m cable |
| Operating temperature | -25°C to 55°C |
| Current draw (mA @ 12VDC) | 137 |
| Current draw (mA @ 24VDC) | 80 |
| Approved to | COLREG72, EN14744, IEC 60945, USCG |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Operating voltage (V) | 10-32 |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Water resistance | IP68 |
| Weight (g) | 340 |
