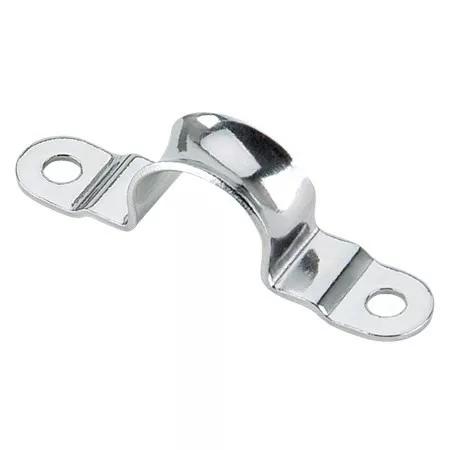

Specifications for Harken 51mm Trigger Cleat Eyestrap
| Fastener Ø (mm) | 5 |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| NBL (kg) | 726 |

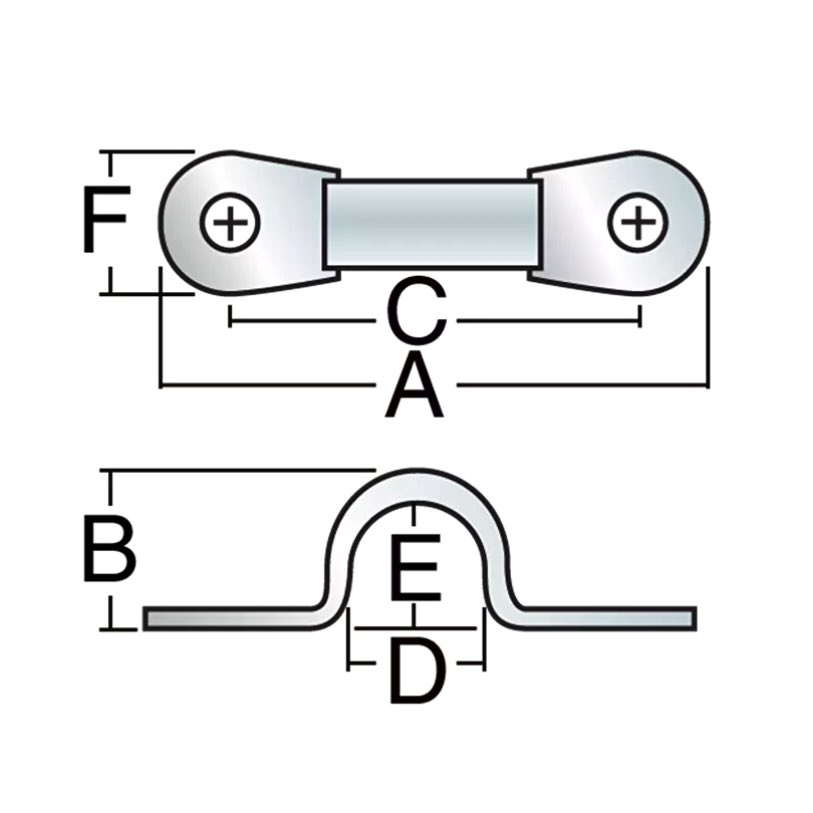

| A (mm) | 64 |
| B (mm) | 19 |
| C (mm) | 51 |
| D (mm) | 19 |
| E (mm) | 16 |
| F (mm) | 12 |
| Weight (g) | 14 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Eyestraps are useful accessories. They form low load mounting bases for blocks, serve as lash-down points, and can be used in conjunction with fairleads.
The Harken 51mm Trigger Cleat Eyestrap fits Cam Cleat H-418
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Fastener Ø (mm) | 5 |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| NBL (kg) | 726 |
| A (mm) | 64 |
| B (mm) | 19 |
| C (mm) | 51 |
| D (mm) | 19 |
| E (mm) | 16 |
| F (mm) | 12 |
| Weight (g) | 14 |
