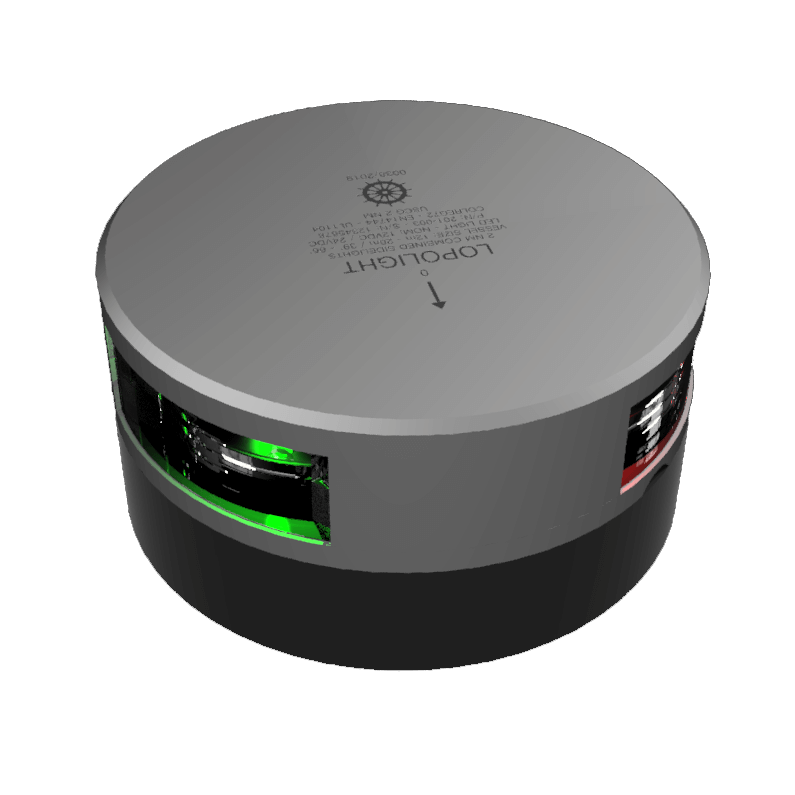

Lopolight 2NM Combined Sidelights – 2.5m Cable (Silver or Black Anodised)
[For vessels under 20m – LED navigation light]
The Lopolight 2NM Combined Sidelights provide a compact, compliant navigation lighting solution for vessels under 20 metres, integrating both port (red) and starboard (green) beams into a single housing. Each sector projects a precise 112.5° beam visible to 2 nautical miles, in full accordance with COLREG72 requirements.
Available in Silver or Black anodised aluminium, this model is built for durability and corrosion resistance. The horizontal-mount base makes it suitable for installation on deck or superstructure topsides.
Rated IP68, the epoxy-sealed electronics ensure protection from saltwater, vibration, and UV damage. The 2.5-metre marine-grade cable provides a standard-length connection for most installations.
Key Features:
- Suitable for vessels under 20 metres
- Combined port and starboard sidelights (112.5° each, visible to 2NM)
- Horizontal mount – compact design for deck or structure top installation
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine durability
- Supplied with 2.5m marine-grade cable
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative version available: reversible mounting model for installation beneath superstructure
Spezifikationen
| Farbe | Silber oder Schwarz |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane oder Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 2.5m cable |
| Dimensions (mm) | Ø92,5mm x 46mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 163 |
| Current draw (mA @ 24VDC) | 90 |
| Boat size (m) | 12-20M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Sichtweite (NM) | 2 |
| Leistung (W) | 2.2 |
| Spannung unter Betrieb | 10-32 |
| Garantie (Jahren) | 5 year limited warranty |
| Wasserdichtigkeit | IP68 |
| Gewicht (g) | 550 |
