KA-KBO30_Karver Drawing Lashing Block_001.PDF
Karver KBO30 Lashing Block Technical Drawing
|
|
|
|
KA-KBO30_Karver 2D Drawing Lashing Block_001.DWG
Karver KBO30 2D Lashing Block Technical Drawing
|
|
|
|
KA-KBO30_Karver 3D Drawing Lashing Block_001.igs
Karver KBO30 3D Lashing Block Technical Drawing
|

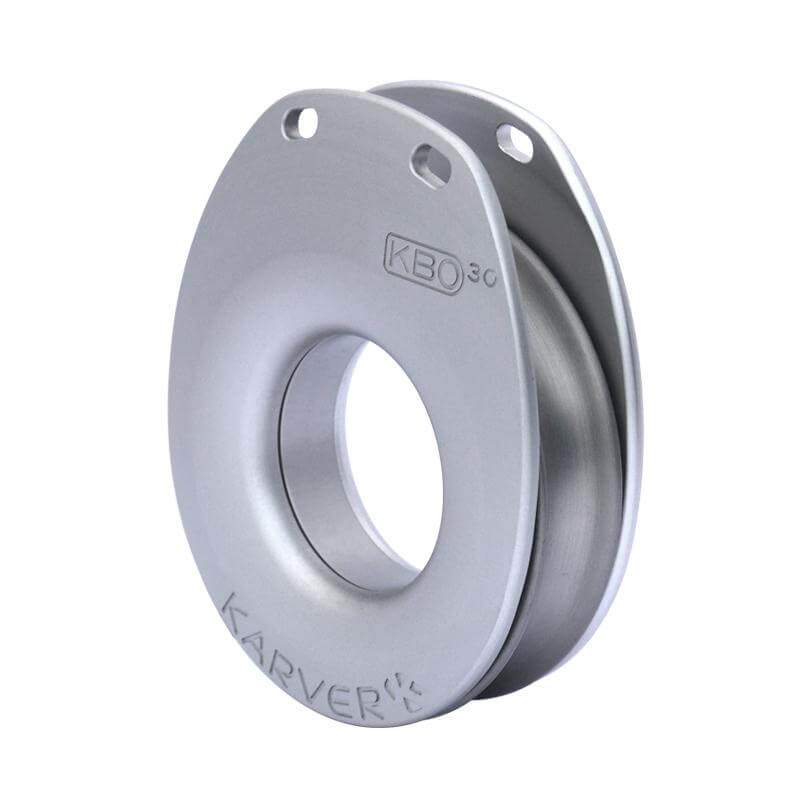

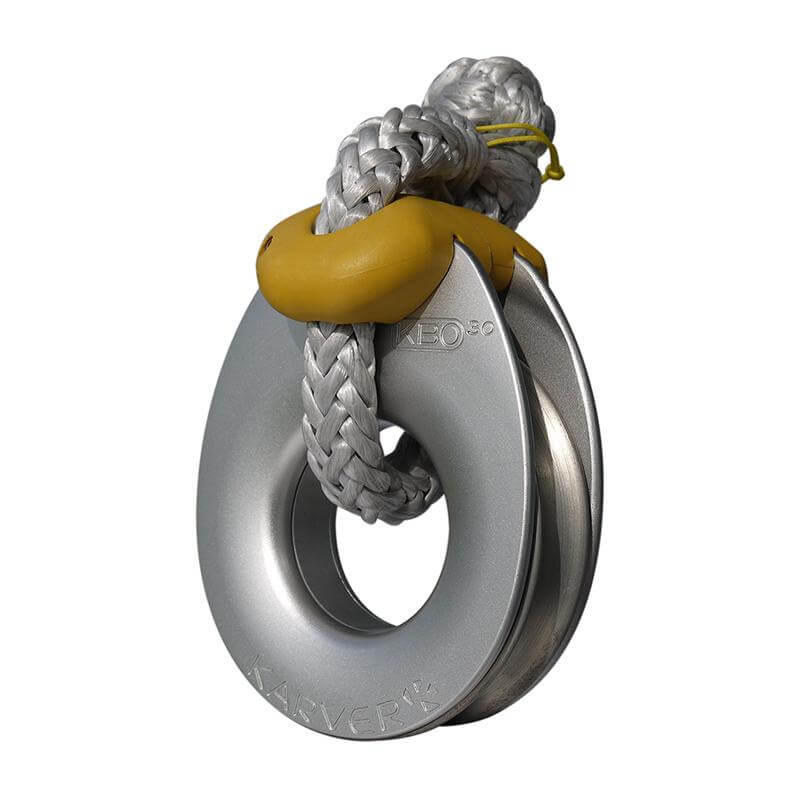

The KBO rope lashing, which comes supplied with the block, makes fitting easier and quicker than standard shackles and will never sieze due to load or rust over the years. The cheeks are made from aluminium alloy and the block features a two stage bearare made from aluminium alloy and the block features a two stage bearing system to enhance their low friction performance under higher loads.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Bearing type | Ball bearing |
| Cordage recommandé – Ø Max (mm) | 16 |
| Ø réas (mm) | 97 |
| Winch | Non |
| Charge de travail (kg) | 3500 |
| Charge de rupture (kg) | 7000 |
| Poids (g) | 334 |
