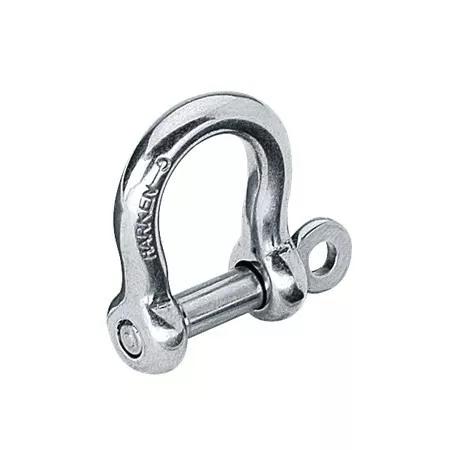

Specifications for Harken 5mm Shallow Bow Shackle

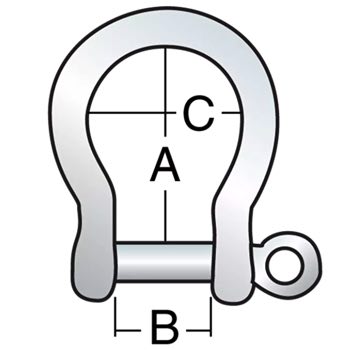

| Shackle pin Ø (mm) | 5 |
| Charge de travail (kg) | 540 |
| Charge de rupture (kg) | 1080 |
| A (mm) | 17 |
| B (mm) | 11 |
| C (mm) | 14 |
| Poids (g) | 14.5 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Shackle pin Ø (mm) | 5 |
| Charge de travail (kg) | 540 |
| Charge de rupture (kg) | 1080 |
| A (mm) | 17 |
| B (mm) | 11 |
| C (mm) | 14 |
| Poids (g) | 14.5 |
