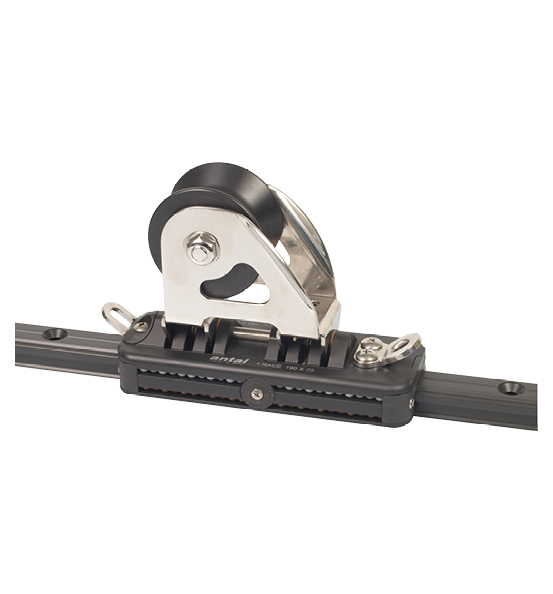

Antal 4Race 190 Genoa Car – 31×21, 1:1 Control
The Antal 4Race 190 Genoa Car – 1:1 Control is the largest in the 4Race genoa car series, designed to run on the 31×21 mm 4Race track (Antal ref: 4510). With a Safe Working Load (SWL) of 1900 kg and a large 75 mm sheet sheave, it is built to handle the significant loads of yachts carrying powerful genoas, while ensuring smooth and efficient lead adjustment.
The car is built from hard black anodised aluminium with stainless steel side plates, running on four rows of Torlon® and Delrin® ball bearings for consistently low-friction performance under maximum load. The construction provides strength and durability while allowing for easy servicing to maintain long-term reliability.
Configured for a 1:1 control system, this model is fitted with a becket at each end of the car, offering a straightforward and dependable arrangement for controlling the lead position.
Key Features:
- Designed for yachts using the 31×21 mm 4Race track (ref: 4510)
- SWL 1900 kg for heavy-load applications
- Four rows of Torlon® and Delrin® ball bearings for smooth travel
- 1:1 control system with beckets at each end
- 75 mm main sheet sheave for efficient genoa sheet handling
- Hard anodised aluminium body with stainless steel side plates
- Fully serviceable design for long-term durability
The Antal 4Race 190 Genoa Car – 31×21, 1:1 Control delivers maximum strength and precision in the 4Race genoa range, making it the ideal choice for larger yachts requiring dependable lead control under very high sheet loads.
Spécifications
| Width (mm) | 70 |
| Length (mm) | 190 |
| Ø réas (mm) | 75 |
| Hauteur d’entrée du cordage (mm) | 78 |
| Charge de travail (kg) | 1900 |
