Specifications for Antal Dyneema Pad Eye D8 W/Studs
| Width (mm) | 60 |
| Fixing hole Ø (mm) | 8 |
| Number of fixing holes | 3 |
| Length (mm) | 77 |
| Cordage recommandé – Ø Max (mm) | 8 |
| Style | Fixed |
| Matériau | Aluminum |
| Hauteur (mm) | 27 |
| Charge de travail (kg) | 2200 |
| D (mm) | 12 |
| Poids (g) | 60 |

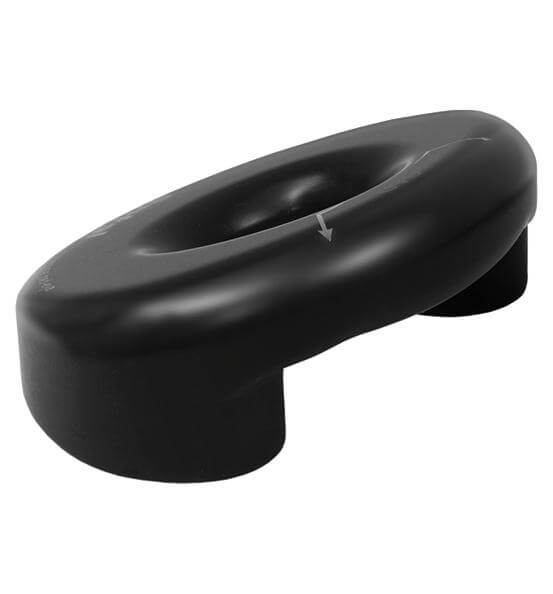

Antal Soft Attach Pad Eye for 8mm Line
The Antal Soft Attach Pad Eye for 8mm Line is designed for textile attachments such as loops, strops, and lashings, providing a secure, lightweight alternative to stainless steel pad eyes. With a Safe Working Load (SWL) of 2,200 kg, it offers reliable strength for mid-sized yacht applications.
Manufactured from high-strength aluminium and hard anodised for corrosion resistance, the pad eye features smooth, rounded edges to protect rope fibres. The wide, recessed central groove ensures lashings remain securely aligned under load, reducing chafe and extending service life.
Two fixing options are available:
- Screw/Bolt Fixing – secured with countersunk fasteners, visible from the top.
- Stud Fixing – supplied with threaded studs integrated into the base, passing through the deck and fastened from below, leaving a flush, snag-free surface.
Features:
- Designed for 8mm lines
- Safe Working Load (SWL): 2,200 kg
- Hard anodised aluminium with rounded edges
- Central groove for secure rope positioning
- Screw/bolt or stud fixing options
- Lightweight, strong, and corrosion-resistant
Applications:
- Ideal for securing blocks, control lines, or strops on deck
- Suitable for mast and boom installations
- A low-profile, lightweight solution for textile rigging
Spécifications
| Width (mm) | 60 |
| Fixing hole Ø (mm) | 8 |
| Number of fixing holes | 3 |
| Length (mm) | 77 |
| Cordage recommandé – Ø Max (mm) | 8 |
| Style | Fixed |
| Matériau | Aluminum |
| Hauteur (mm) | 27 |
| Charge de travail (kg) | 2200 |
| D (mm) | 12 |
| Poids (g) | 60 |
