Specifications for Antal Dyneema Pad Eye D6 W/Studs
| Width (mm) | 45 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 3 |
| Length (mm) | 58 |
| Cordage recommandé – Ø Max (mm) | 6 |
| Style | Fixed |
| Matériau | Aluminum |
| Hauteur (mm) | 21 |
| Charge de travail (kg) | 1300 |
| D (mm) | 10 |
| Poids (g) | 50 |

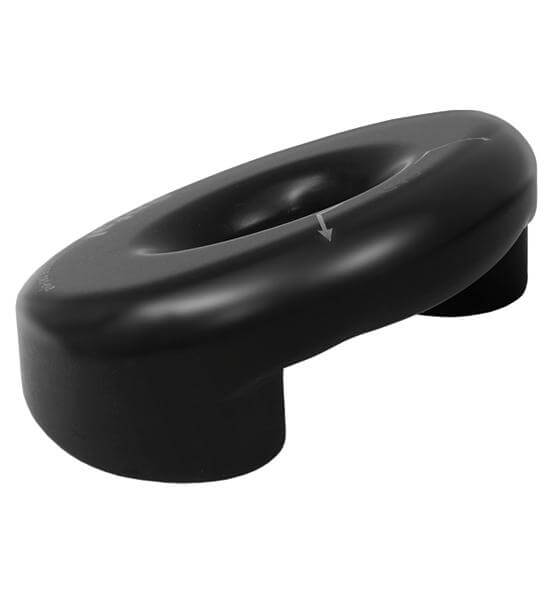

Antal Soft Attach Pad Eye for 6mm Line
The Antal Soft Attach Pad Eye for 6mm Line is a compact, high-strength fitting designed for secure textile attachments such as loops, strops, or lashings. With a Safe Working Load (SWL) of 1,300 kg, it provides a strong yet lightweight solution for attaching blocks and control systems without the weight or wear of stainless steel hardware.
Machined from high-strength aluminium and finished with hard anodising, the pad eye is both durable and corrosion-resistant. All edges are carefully rounded to protect ropes from chafe, while the wide, recessed central groove ensures strops or lashings remain perfectly aligned under load.
Two installation variants are available:
- Screw/Bolt Fixing – secured with countersunk fasteners through the pad eye, visible from the top.
- Stud Fixing – supplied with threaded studs integrated into the base, passing through the deck and fastened from below. This gives a flush, snag-free surface with no visible fastener heads.
Both versions deliver a reliable, maintenance-free attachment point ideal for modern textile rigging.
Features:
- Designed for soft attachments with 6mm lines
- Safe Working Load (SWL): 1,300 kg
- Hard anodised aluminium construction
- Rounded edges prevent rope chafe
- Wide central groove for secure line seating
- Available with screw/bolt fixings or integrated studs
- Lightweight, corrosion-resistant, and maintenance-free
Applications:
- Attaching blocks, loops, or control lines on yachts
- Suitable for deck, mast, or boom installations
- Preferred where a low-profile, lightweight alternative to stainless steel pad eyes is required
Spécifications
| Width (mm) | 45 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 3 |
| Length (mm) | 58 |
| Cordage recommandé – Ø Max (mm) | 6 |
| Style | Fixed |
| Matériau | Aluminum |
| Hauteur (mm) | 21 |
| Charge de travail (kg) | 1300 |
| D (mm) | 10 |
| Poids (g) | 50 |
