Specifications for Ropeye Stick-On Bolt Padeye
| Material | Aluminium or Karbon or Glasfaser |
| A (mm) | 30 or 40 or 50 |
| Style | Fixed |
| SWL (kg) | 100 |
| NBL (kg) | 200 |
| B (mm) | 40 |
| C (mm) | 4 |
| D (mm) | M6 |
| Gewicht (g) | 8,2 |

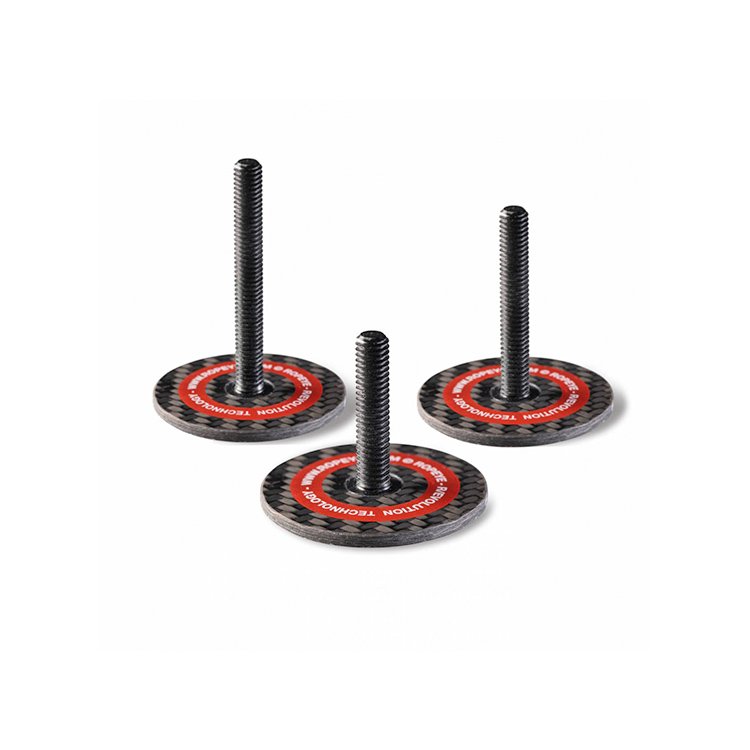

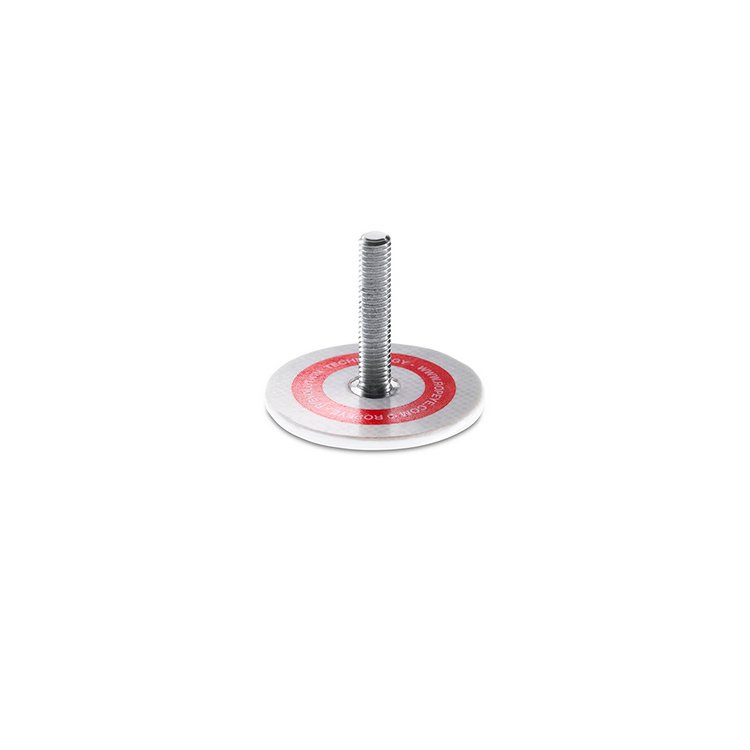

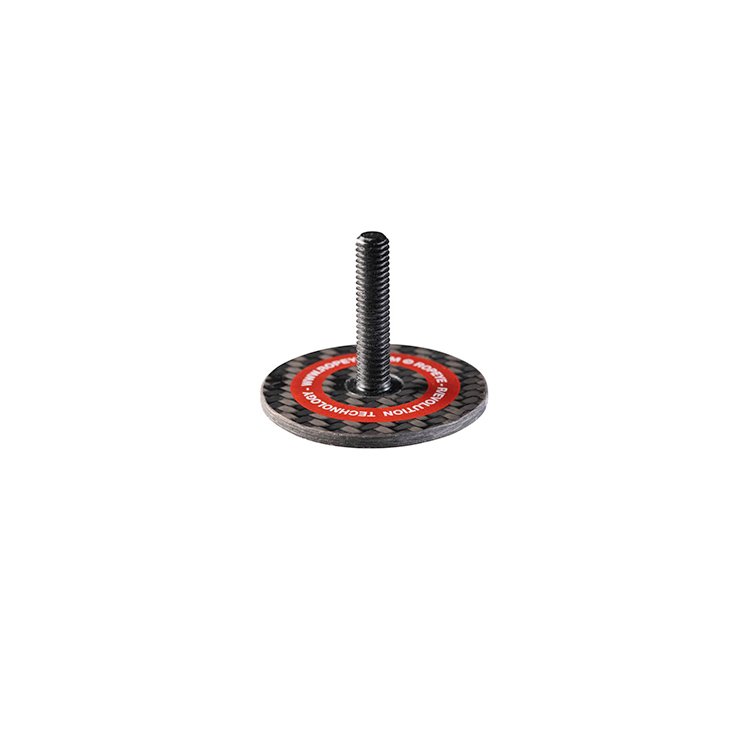

Ropeye Stick-On Bolt Padeye – Lightweight Bonded Attachment Point with Threaded Stud
The Ropeye Stick-On Bolt Padeye is a bonded, ultra-lightweight attachment point designed for non-structural applications where drilling is not an option. Featuring a carbon or glass fibre base and an aluminium threaded stud, this innovative padeye provides a secure, low-profile fixing point without compromising deck or bulkhead integrity. Ideal for internal and lightweight external applications, it offers quick and easy installation using adhesive bonding rather than mechanical fastenings.
Available with three threaded stud lengths – 30mm, 40mm, and 50mm – the Ropeye Stick-On Bolt Padeye is adaptable to different mounting needs while maintaining its low weight and high strength.
Key Features:
✔ Bonded Installation – No Drilling Required – Secures in place with resin-based adhesives for a permanent bond or Sikaflex for a removable option.
✔ Lightweight & Strong Design – Base made from carbon or glass fibre, with an aluminium threaded stud for reliable attachment.
✔ Multiple Stud Length Options – Available in 30mm, 40mm, and 50mm, ensuring adaptability for different applications.
✔ Versatile Fixing Solution – Provides a secure mounting point for small fittings, accessories, and hardware.
✔ Safe Working Load of 50kg – Ideal for non-structural applications, where lightweight attachment points are required.
Applications:
- Mounting lightweight accessories and hardware without the need for drilling.
- Securing soft rigging components in weight-sensitive locations.
- Internal and external applications, including bulkheads, cabins, and deck areas.
- Ideal for racing yachts, performance boats, and lightweight applications where drilling is not an option.
Installation:
- Prepare the surface by sanding it lightly.
- Clean the sanded area with acetone to remove dust and ensure a strong bond.
- Apply adhesive (resin-based for a permanent bond or Sikaflex for a removable option).
- Press the Ropeye Stick-On Bolt Padeye firmly into place.
- Wait 24 hours before applying any load to ensure full adhesion.
Warranty: The Ropeye Stick-On Bolt Padeye comes with a 2-year warranty, ensuring long-term reliability and performance.
Spezifikationen
| Material | Aluminium oder Karbon oder Glasfaser |
| A (mm) | 30 oder 40 oder 50 |
| Style | Fixed |
| SWL (kg) | 100 |
| NBL (kg) | 200 |
| B (mm) | 40 |
| C (mm) | 4 |
| D (mm) | M6 |
| Gewicht (g) | 8,2 |
