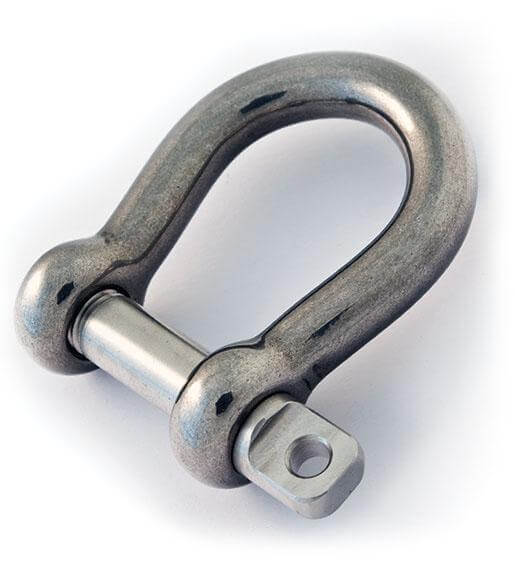

Specifications for Petersen 9.5mm Socket Pin Bow Shackle
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Ø axe (mm) | 9,5 |
| Charge de rupture (kg) | 3800 |
| B (mm) | 9,5 |
| J (mm) | 19 |
| L (mm) | 38 |
| P (mm) | 9,5 |
| W (mm) | 28 |
| Poids (g) | 106 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Petersen shackles are produced from 316L grade stainless steel; using electrical upset forging technique, to ensure that the grain flows around the shackle head to give maximum strength. This gives the Petersen shackles a high corrosion resistance and excellent fatigue strength.
The socket pin allows the pin to sit flush with the shackle, reducing the risk of snagging.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Ø axe (mm) | 9,5 |
| Charge de rupture (kg) | 3800 |
| B (mm) | 9,5 |
| J (mm) | 19 |
| L (mm) | 38 |
| P (mm) | 9,5 |
| W (mm) | 28 |
| Poids (g) | 106 |
