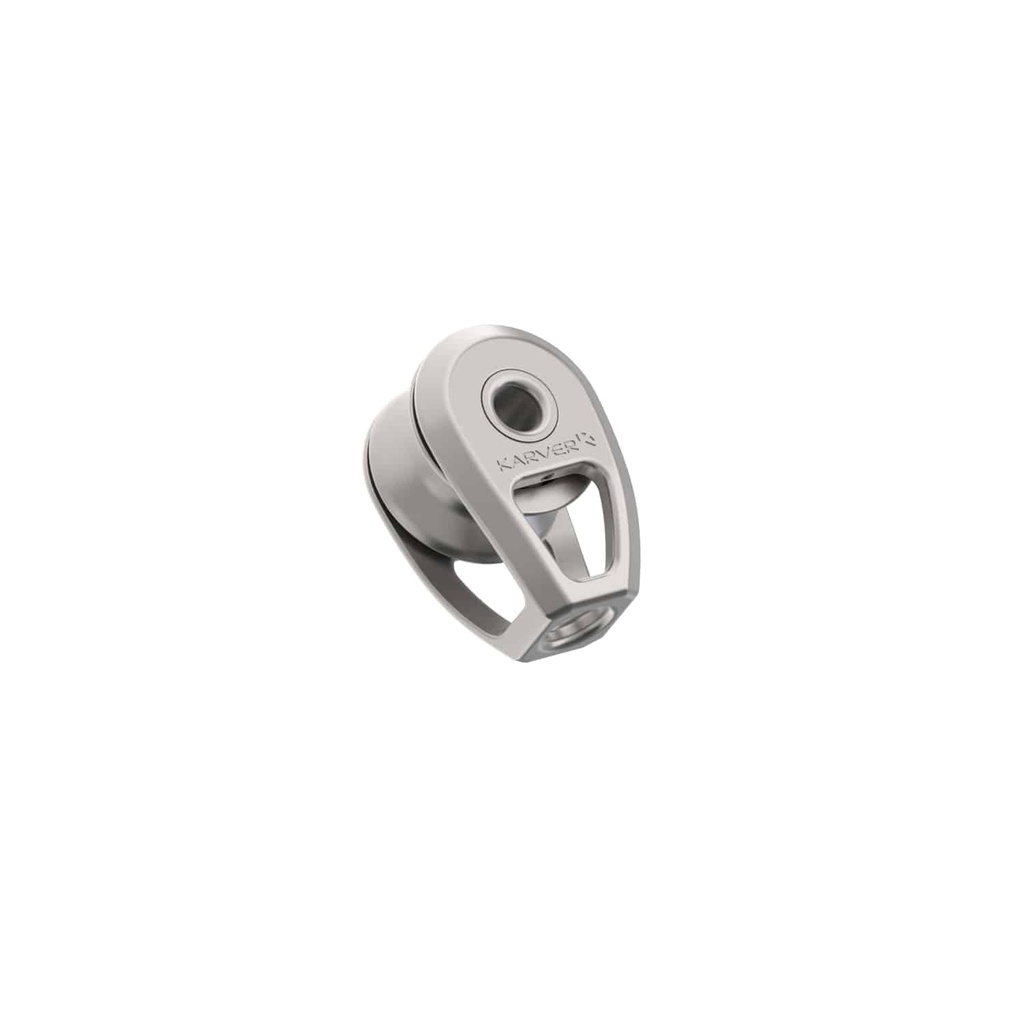

Karver KBS10 Lash Stainless Steel Block
The most versatile block in Karver’s new stainless steel range.
The Karver KBS10 Lash Block brings modern rigging flexibility to the timeless aesthetic of stainless steel. Part of the 2025-launched KBS stainless steel block range, this model is engineered for soft attachment via Dyneema® lashings, unlocking a wide range of installation options across both performance and cruising setups.
Built for Adaptability
With its sleek, compact die-cast stainless steel body and high-efficiency stainless steel bearing, the KBS10 Lash offers the same internal engineering quality seen across Karver’s premium blocks—but in a format that embraces simplicity and multi-role versatility.
Designed to accommodate lines up to 12mm in diameter, and rated to a Safe Working Load (SWL) of 600kg, this block is an ideal choice for:
- Soft strops and custom lashing points
- Dinghy and keelboat control systems
- Multihull bridle and barber-hauler setups
- Inshore racing or bluewater cruising layouts
Whether you're retrofitting an older yacht or designing a modern rig from scratch, the KBS10 Lash is a go-to solution for smart deck organisation and friction-reducing line routing.
Key Features

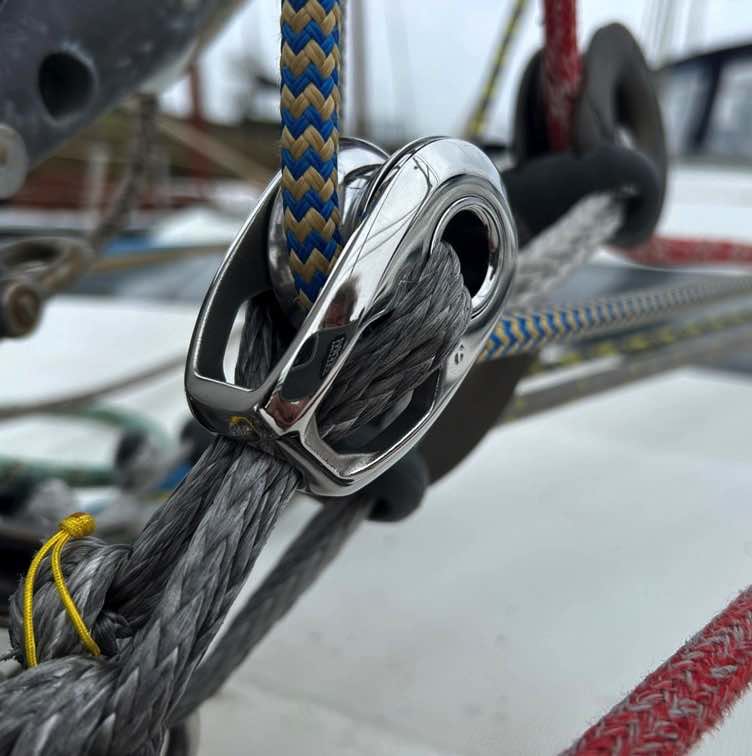

- Lashing eye design – optimised for soft Dyneema® attachments
- Takes lines up to 12mm
- 600kg Safe Working Load
- Compact and lightweight – easy to rig in tight or mobile locations
- Stainless steel bearing – for smooth rotation under load
- Eco-conscious die-cast stainless steel body – durable, sustainable, and corrosion-resistant
Why Choose the KBS10 Lash?
This is the most versatile block in the KBS series, offering unparalleled rigging flexibility without compromising performance or aesthetics. It’s an ideal choice for sailors who appreciate clean, efficient, and adaptable rigging in a wide variety of onboard applications.
Whether lashing to toe rails, padeyes, or pulpit bases, the KBS10 Lash Block is a modern rigging essential disguised in classic stainless steel form.
Spécifications
| Width (mm) | 25.4 |
| Length (mm) | 45.7 |
| Cordage recommandé – Ø Max (mm) | 12 |
| Ø réas (mm) | 30 |
| Charge de travail (kg) | 600 |
| Charge de rupture (kg) | 1200 |
| Poids (g) | 96 |
