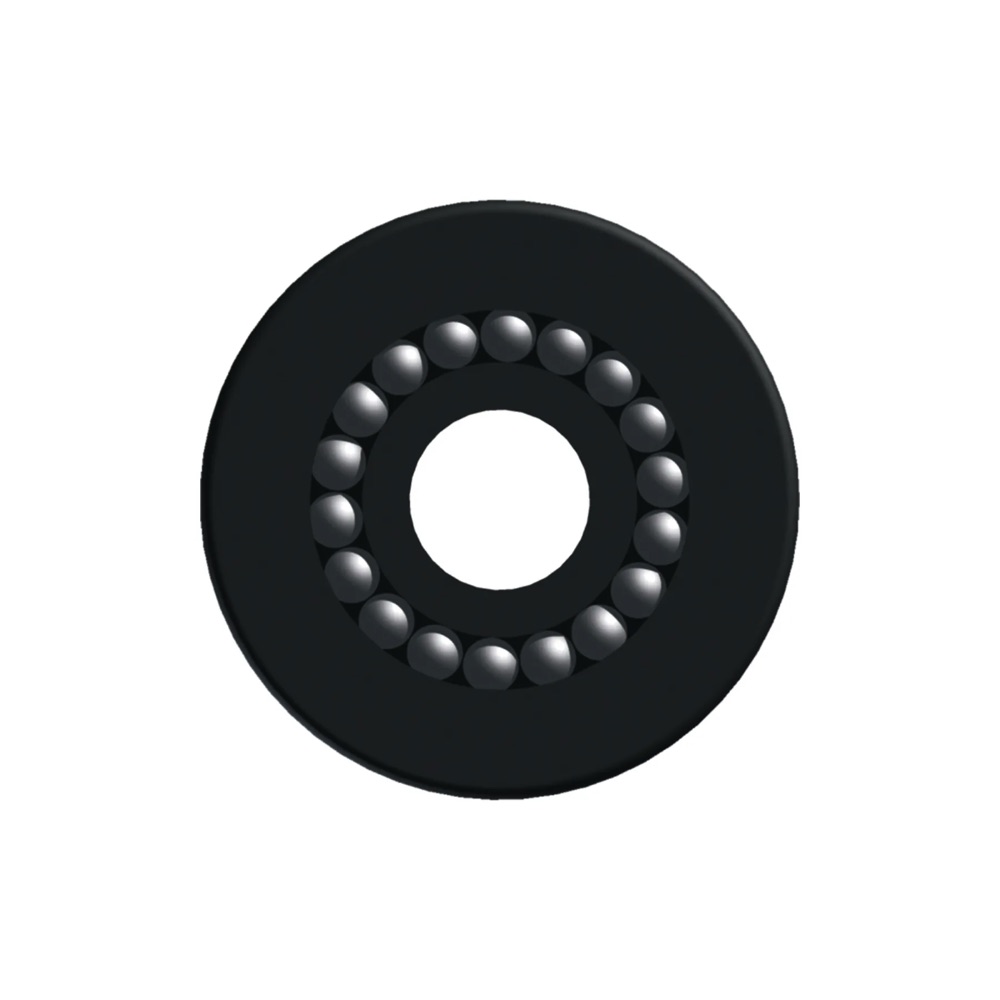

Antal Mekton Sheave for Mini Blocks 34 mm
A genuine Antal replacement sheave for the Stainless Mini Blocks range. The 34 mm Mekton (fibre-reinforced resin) sheave runs on side Delrin® ball bearings for low friction in compact layouts. It’s a quick, lightweight refresh for vang cascades, traveller controls and other small-line systems where smooth running and reliability matter.
Why it’s a smart upgrade
- Low friction in a tiny footprint thanks to side Delrin® ball bearings
- Light, tough Mekton resin sheave for dependable performance afloat
- Drop-in swap for Antal Mini Blocks to restore like-new efficiency
Key specifications
- Sheave Ø: 34 mm
- Max rope Ø: 6 mm
- Safe Working Load (SWL): 400 kg
- Thickness (T): 10 mm
- Axle/bore Ø (D3): 8 mm
- Hub Ø (D2): 10 mm
- Sheave material: Mekton (resin)
- Side bearing: Delrin® balls
Typical applications
- Traveller, vang and cunningham cascades on dinghies and small keelboats
- Mast base and deck organisers for 4–6 mm control lines
- Refurbishing Antal Stainless Mini Blocks where the sheave is worn
Fit & compatibility notes
- Confirm your block’s sheave Ø (34 mm), axle/bore Ø (8 mm) and thickness (10 mm) before ordering
- Designed for rope up to 6 mm; do not use with wire or rod
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Width (mm) | 10 |
| Cordage recommandé – Ø Max (mm) | 6 |
| Ø Intérieur (mm) | 8 |
| Matériau | Resin |
| Ø réas (mm) | 34 |
| Charge de travail (kg) | 400 |
