Specifications for Antal U-Bolt - 6mm
| Length (mm) | 55 |
| Style | Fixed |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316 |
| Charge de travail (kg) | 800 |

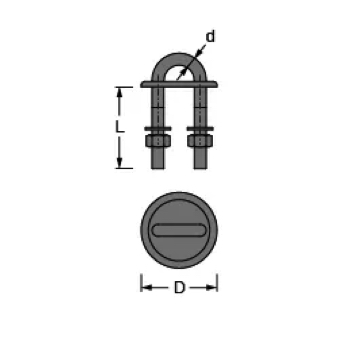

| D (mm) | 44 |
| d (mm) | 6 |
| Poids (g) | 60 |
Antal U-Bolt – 6mm
The Antal U-Bolt – 6mm provides a cost-effective and practical attachment point for smaller yachts. Made from 316 stainless steel, it is resistant to corrosion and marine wear. With a Safe Working Load (SWL) of 800 kg, it is suitable for securing medium-duty control lines, lashings, or smaller deck hardware.
As with all Antal U-Bolts, this fitting uses only two fixing points, making it economical and easy to install. However, unlike Antal’s Standard Padeyes, which move to four-bolt fixings from 8mm upwards to spread load more effectively, U-Bolts concentrate load on two points. They are best used for lighter applications, while Standard Padeyes should be chosen for higher-load situations.
Features:
- 6mm gauge U-Bolt, SWL 800 kg
- High-quality 316 stainless steel construction
- Two-bolt design, quick and easy to install
- Corrosion-resistant and maintenance-free
- Economical attachment solution
Applications:
- Medium-duty control lines and lashings
- Attachment point for smaller blocks
- Suitable for lighter yachts; Standard Padeyes recommended where higher loads are expected
Spécifications
| Length (mm) | 55 |
| Style | Fixed |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316 |
| Charge de travail (kg) | 800 |
| D (mm) | 44 |
| d (mm) | 6 |
| Poids (g) | 60 |
