Specifications for Antal Removable Pad Eye - 6mm
| Fixing hole Ø (mm) | 6 |
| Style | Removable |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Charge de travail (kg) | 800 |
| B (mm) | 12 |
| D (mm) | 40 |
| d (mm) | 6 |
| E (mm) | 32 |
| F (mm) | 54 |
| Poids (g) | 230 |
Antal Removable Pad Eye – 6mm
The Antal Removable Pad Eye – 6mm offers the same strength and reliability as a fixed padeye but with the added advantage of being detachable when not required. Manufactured from 316 stainless steel, it provides a secure attachment point with a Safe Working Load (SWL) of 800 kg, while allowing a clean, obstruction-free deck when removed.

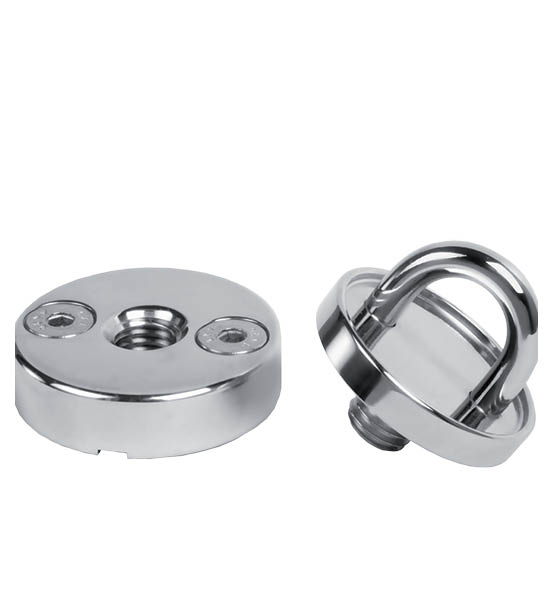

This removable system is based on a two-part design: a recessed deck socket permanently installed in the structure, and a detachable padeye that can be slotted in or removed in seconds. When the padeye is taken out, only the flush-fitting deck socket remains, eliminating potential snags and preserving a sleek deck profile.
Compared to the traditional Standard Padeye, the Removable Padeye is particularly beneficial on performance yachts or multi-purpose deck layouts where fittings are only needed in certain conditions, or where reducing trip hazards and clutter is a priority.
Features:
- 6mm gauge wire removable padeye, SWL 800 kg
- Marine-grade 316 stainless steel construction
- Recessed deck socket for flush installation
- Padeye can be inserted/removed in seconds
- Same strength rating as equivalent fixed padeye
- Eliminates deck clutter and trip hazards when not in use
Applications:
- Temporary attachment points for blocks or lashings
- Ideal for racing yachts where fittings are not always required
- Useful in high-traffic areas where a flush deck is essential when padeye is removed
Spécifications
| Fixing hole Ø (mm) | 6 |
| Style | Removable |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Charge de travail (kg) | 800 |
| B (mm) | 12 |
| D (mm) | 40 |
| d (mm) | 6 |
| E (mm) | 32 |
| F (mm) | 54 |
| Poids (g) | 230 |
