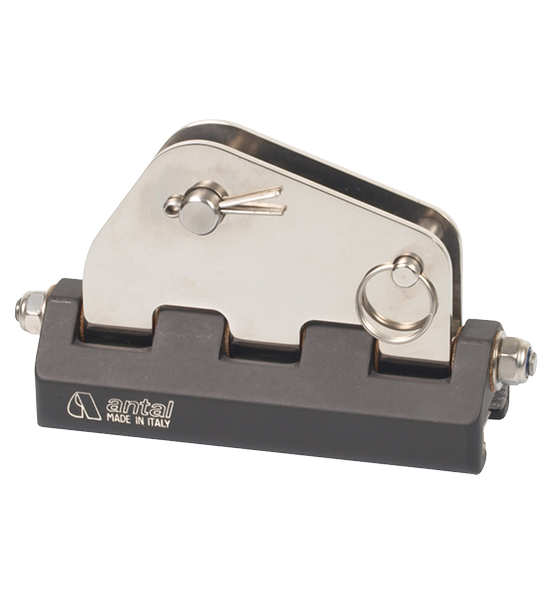

Antal Outhaul Slider 160 – T Track 40×8
The Antal Outhaul Slider 160 is a powerful outhaul solution for yachts from 48–60 ft, designed to manage the heavy clew loads of larger mainsails. Running on the 40×8 mm T Track, it provides a simple yet extremely robust setup for outhaul systems where strength and reliability are the key priorities.
The slider is 160 mm long, giving a broad and stable footprint on the track. Its hard anodised aluminium body is reinforced with stainless steel side plates, which carry two heavy-duty pins: one for attaching the mainsail clew and another for terminating the outhaul line. This two-pin arrangement keeps the system compact while maintaining a clean lead for the outhaul.
With a Safe Working Load (SWL) of 6000 kg, the Outhaul Slider 160 is engineered to withstand the extreme loads generated by big-boat mainsails. The plain-bearing design ensures dependable operation with minimal maintenance, making it a practical choice for yachts that prioritise durability over moving-part complexity.
The car is designed to run on the 40×8 mm T Track (Antal ref: 602.213), used in combination with end stops ref: 691.341/B, ensuring safe and secure integration into the outhaul system.
Key Features:
- Suitable for yachts from 48–60 ft
- SWL 6000 kg for heavy-load applications
- Runs on 40×8 mm T Track (ref: 602.213) with end stops ref: 691.341/B
- 160 mm long slider body for strength and stability
- Two stainless steel pins: forward pin for the clew, aft pin for the outhaul termination
- Hard anodised aluminium body with stainless steel side plates
- Plain-bearing design for simplicity and reliability
The Antal Outhaul Slider 160 – T Track 40×8 is a simple yet extremely strong solution, ideally suited to larger yachts where maximum load resistance and long-term reliability are the priorities.
Specifications
| Width (mm) | 60 |
| Length (mm) | 160 |
| Recommended Boat size - Max (ft) | 60 |
| Recommended Boat size - Min (ft) | 48 |
| SWL (kg) | 6000 |
| Weight (g) | 1230 |
