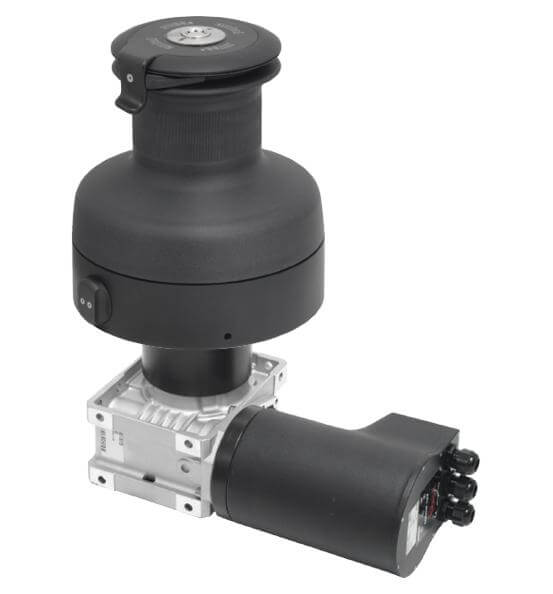

Specifications for Antal 62 3-Speed Electric (Horizontal) 12V Aluminium Winch (3-Speed Manual)
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Skirt Details | Black Aluminium |
| Size | 62 |
| Style | Horizontal |
| Power (W) | 1000 |
| Deck thickness Max (mm) | 80 |
| Voltage (V) | 12 |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 241 |
| Line recovery per rotation - 2nd gear (mm) | 89 |
| Line recovery per rotation - 3rd gear (mm) | 26 |
| Base Ø (mm) | 224 |
| Drum Ø (mm) | 120 |
| Height (mm) | 245 |
| Motor Length (mm) | 311 |
| Gears (Manual) | 3-Speed |
| Warranty (yrs) | 3 |
| A (mm) | 205 |
| B (mm) | 311 |
| C (mm) | 115 |
| D (mm) | 224 |
| d (mm) | 120 |
| E (mm) | 80 |
| H (mm) | 245 |
| Speed (Motor) | 3-Speed |
| Gear ratio 1 (X : 1) | 1.6 |
| Gear ratio 2 (X : 1) | 4.3 |
| Gear ratio 3 (X : 1) | 14.9 |
| Power ratio 1 (X : 1) | 6.6 |
| Power ratio 2 (X : 1) | 17.8 |
| Power ratio 3 (X : 1) | 62.1 |
| Pulling load - Max (kg) | 1400 |
| Line speed - 1st gear (m/min) | 36.9 |
| Line speed - 2nd gear (m/min) | 13 |
| Line speed - 3rd gear (m/min) | 4 |
| Weight (g) | 30200 |
Three Reduced Speed Electric Horizontal Winch
Models XT52, XT62 and XT62.3 are powered with a 1000 Watt, 12 or 24 Volt motor. Two switches, one control box and one breaker complete the system.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
HORIZONTAL AND VERTICAL MOTORS - All the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE - Simply insert the handle to disconnect the gearbox-motor unit. Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
Specifications
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Skirt Details | Black Aluminium |
| Size | 62 |
| Style | Horizontal |
| Power (W) | 1000 |
| Deck thickness Max (mm) | 80 |
| Voltage (V) | 12 |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 241 |
| Line recovery per rotation - 2nd gear (mm) | 89 |
| Line recovery per rotation - 3rd gear (mm) | 26 |
| Base Ø (mm) | 224 |
| Drum Ø (mm) | 120 |
| Height (mm) | 245 |
| Motor Length (mm) | 311 |
| Gears (Manual) | 3-Speed |
| Warranty (yrs) | 3 |
| A (mm) | 205 |
| B (mm) | 311 |
| C (mm) | 115 |
| D (mm) | 224 |
| d (mm) | 120 |
| E (mm) | 80 |
| H (mm) | 245 |
| Speed (Motor) | 3-Speed |
| Gear ratio 1 (X : 1) | 1.6 |
| Gear ratio 2 (X : 1) | 4.3 |
| Gear ratio 3 (X : 1) | 14.9 |
| Power ratio 1 (X : 1) | 6.6 |
| Power ratio 2 (X : 1) | 17.8 |
| Power ratio 3 (X : 1) | 62.1 |
| Pulling load - Max (kg) | 1400 |
| Line speed - 1st gear (m/min) | 36.9 |
| Line speed - 2nd gear (m/min) | 13 |
| Line speed - 3rd gear (m/min) | 4 |
| Weight (g) | 30200 |
