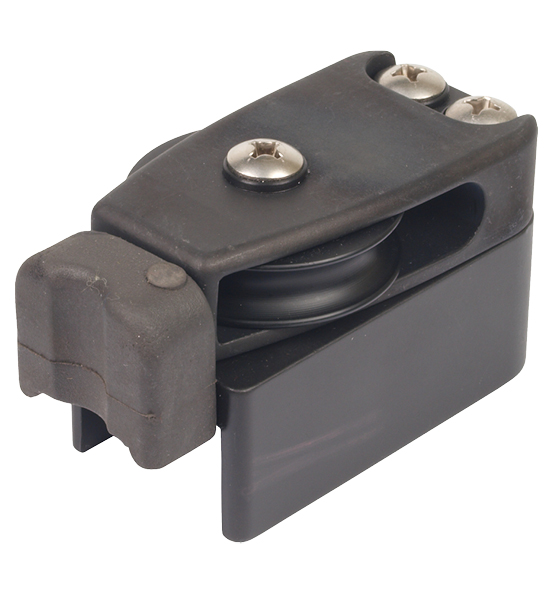

Antal 4Race 110–190 End Control – 1:1 Purchase (Part No. 4272)
The Antal 4Race 110–190 End Control – 1:1 Purchase is a compact control end designed for all sizes of Antal 4Race traveller cars — 110, 150, and 190 — running on the 31x21mm 4Race track.
It features a single high-load sheave for a straightforward 1:1 control line arrangement, making it ideal for smaller yachts or applications where minimal mechanical advantage is sufficient. This design keeps the system simple, lightweight, and easy to operate, while still ensuring smooth, low-friction traveller adjustment.
Constructed from hard anodised aluminium for strength and corrosion resistance, this end control is compatible with all three cam cleat options for the 31x21 track — the 4410 (3-position) for full flexibility, the 4420 (fixed) for 4Race 110 cars, and the 4430 (fixed) for 4Race 150–190 cars.
Key Features:
- Fits Antal 31x21mm 4Race track
- Compatible with 4Race 110, 150, and 190 traveller cars
- Single sheave for simple 1:1 purchase systems
- Works with cam cleats 4410 (3-position), 4420 (fixed 110), or 4430 (fixed 150–190)
- Hard anodised aluminium construction for durability
- Compact, low-profile design for efficient deck layouts
Specifications
| Width (mm) | 45 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 3 |
| Length (mm) | 76 |
| Sheave Ø (mm) | 45 |
| Height (mm) | 48 |
| Weight (g) | 210 |
