Specifications for Antal Standard Padeye 8mm
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 4 |
| Style | Fixed |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| SWL (kg) | 1500 |
| D (mm) | 65 |
| d (mm) | 8 |
| Weight (g) | 160 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

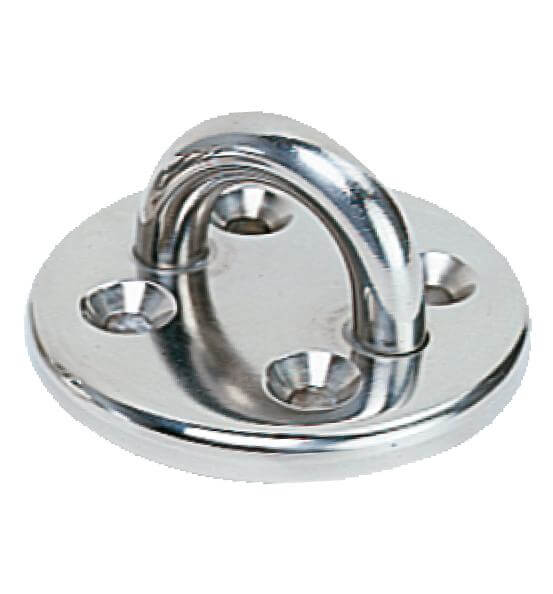

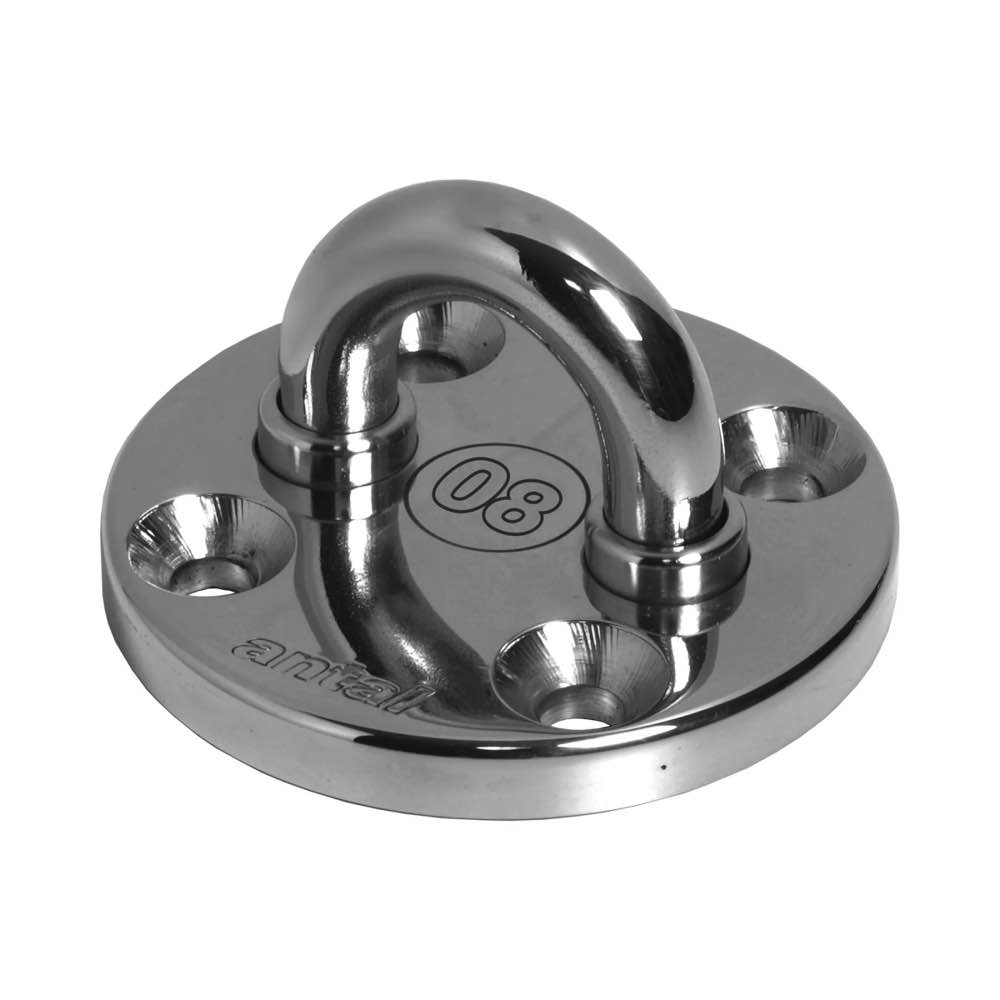

Antal Standard Padeye 8mm
The Antal Standard Padeye 8mm is built from 316 stainless steel, ensuring strength and corrosion resistance. With a Safe Working Load (SWL) of 1,500 kg, it provides a secure and permanent attachment point for medium-duty deck hardware.
As a traditional D-shaped padeye, it is the trusted standard for fixed deck fittings across the industry, offering simple installation and reliable performance.
Features:
- 8mm gauge wire padeye, SWL 1,500 kg
- High-quality 316 stainless steel
- Traditional D-shape for universal applications
- Corrosion-resistant and maintenance-free
Applications:
- Medium-duty blocks, lashings, or safety line attachments
- Suitable for cruising and performance yachts
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 4 |
| Style | Fixed |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| SWL (kg) | 1500 |
| D (mm) | 65 |
| d (mm) | 8 |
| Weight (g) | 160 |
