Specifications for Antal Standard Padeye 14mm
| Fixing hole Ø (mm) | 10 |
| Number of fixing holes | 4 |
| Style | Fixed |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| SWL (kg) | 4600 |
| D (mm) | 99 |
| d (mm) | 14 |
| Weight (g) | 680 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

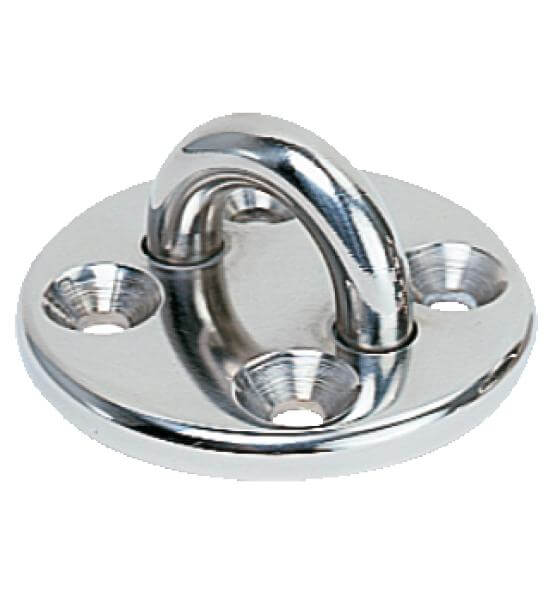

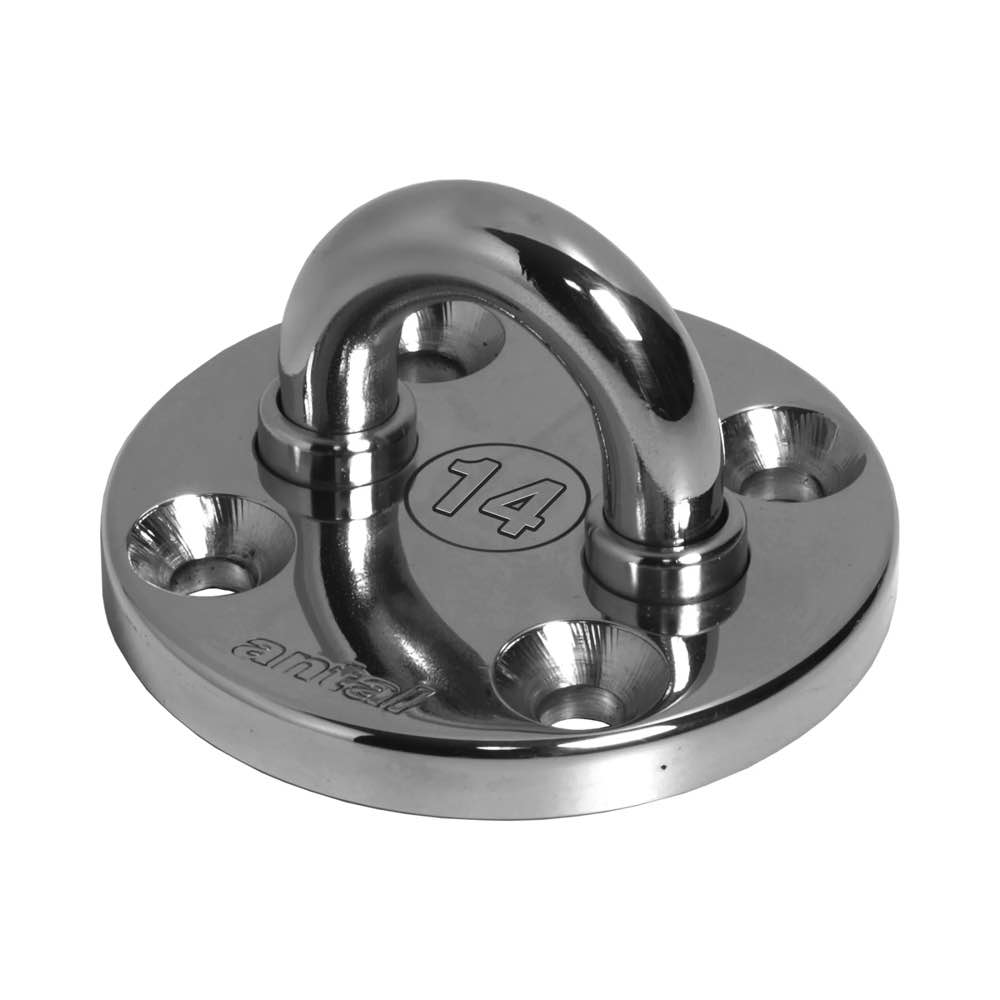

Antal Standard Padeye 14mm
The Antal Standard Padeye 14mm is designed for strength and durability, manufactured from 316 stainless steel. With a Safe Working Load (SWL) of 4,600 kg, it is built for demanding applications where reliability is essential.
The D-shaped design provides a permanent, secure attachment point for large yacht deck hardware.
Features:
- 14mm gauge wire padeye, SWL 4,600 kg
- 316 stainless steel, corrosion-resistant
- Strong, maintenance-free traditional D-shape
Applications:
- Large block attachments
- Lashing and tie-downs for big cruising and racing yachts
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Fixing hole Ø (mm) | 10 |
| Number of fixing holes | 4 |
| Style | Fixed |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| SWL (kg) | 4600 |
| D (mm) | 99 |
| d (mm) | 14 |
| Weight (g) | 680 |
