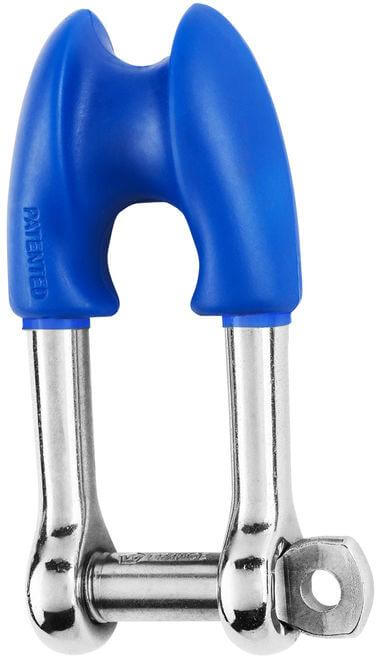

Wichard Thimble Shackle - Ø10mm captive pin

56,37 53,55
5% Off
SKU:
N/A
Brand: Wichard
Shipping Info

30 Tage Geld-zurück-Garantie

 14-tägiges Rückgaberecht

 Expressversand verfügbar

Share :

Wichard's thimble shackle with captive pin combines a shackle with a thimble. The patented thimble cover allows lines to be spliced directly onto shackle, without the need for a separate thimble. The captive pin is a typical shackle pin.

This range of shackles is producted with 316L grade stainless steel, a metal favoured for it's high corrosion resistance in marine environments.

Spezifikationen

Empfohlener max. Leinendurchmesser (mm) 16
Material Edelstahl
Material Grade AISI 316L
Pin Ø (mm) 10
SWL (kg) 1520
NBL (kg) 5000
A (mm) 51
B (mm) 20
C (mm) 10
D (mm) 20
E (mm) 9
F (mm) 95
G (mm) 54
Gewicht (g) 146
