Specifications for MORFRAC morfring Ø 70 mm - Low friction ring
| Gesamtbreite (mm) | 32 |
| Empfohlener max. Leinendurchmesser (mm) | 20 |
| Innendurchmesser (mm) | 30 |
| Aussendurchmesser (mm) | 70 |
| Max. Außendurchmesser (mm) | 20 |
| SWL (kg) | 4700 |
| NBL (kg) | 9400 |
| A (mm) | 70 |
| B (mm) | 30 |
| C (mm) | 32 |
| Gewicht (g) | 112 |

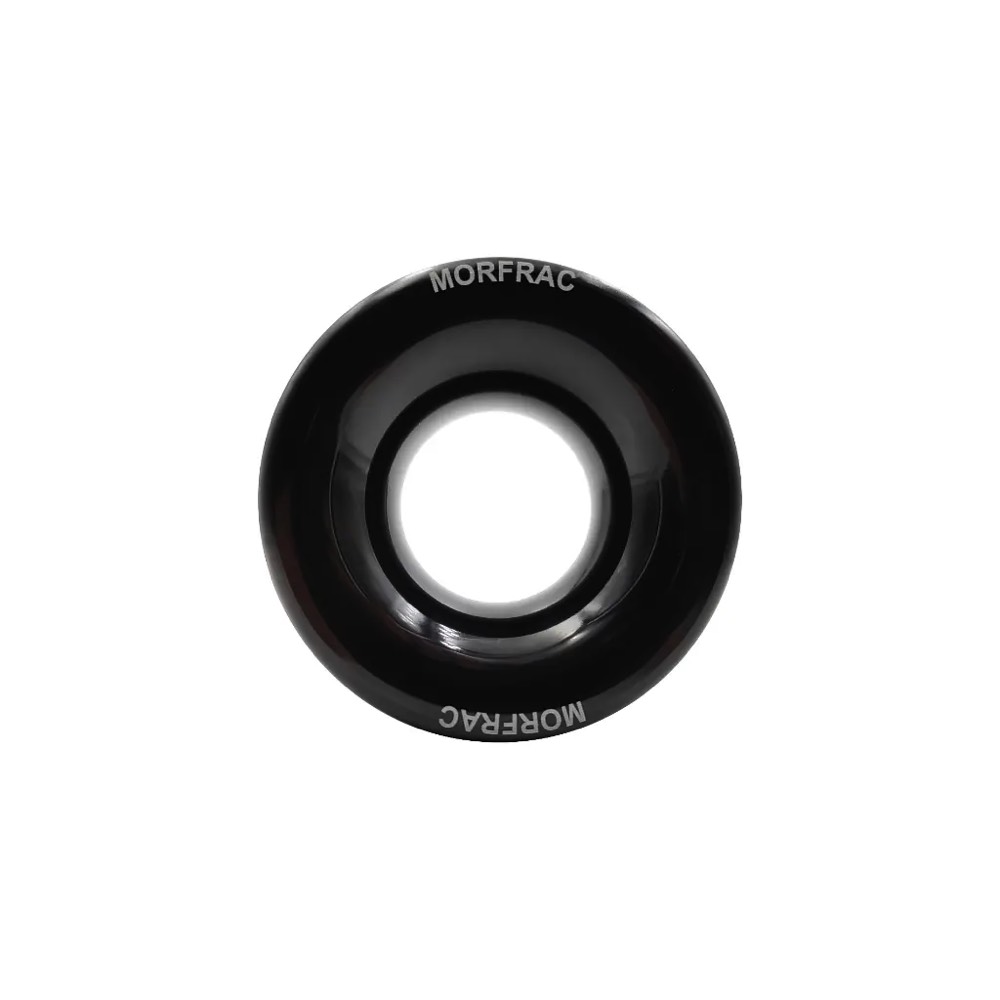

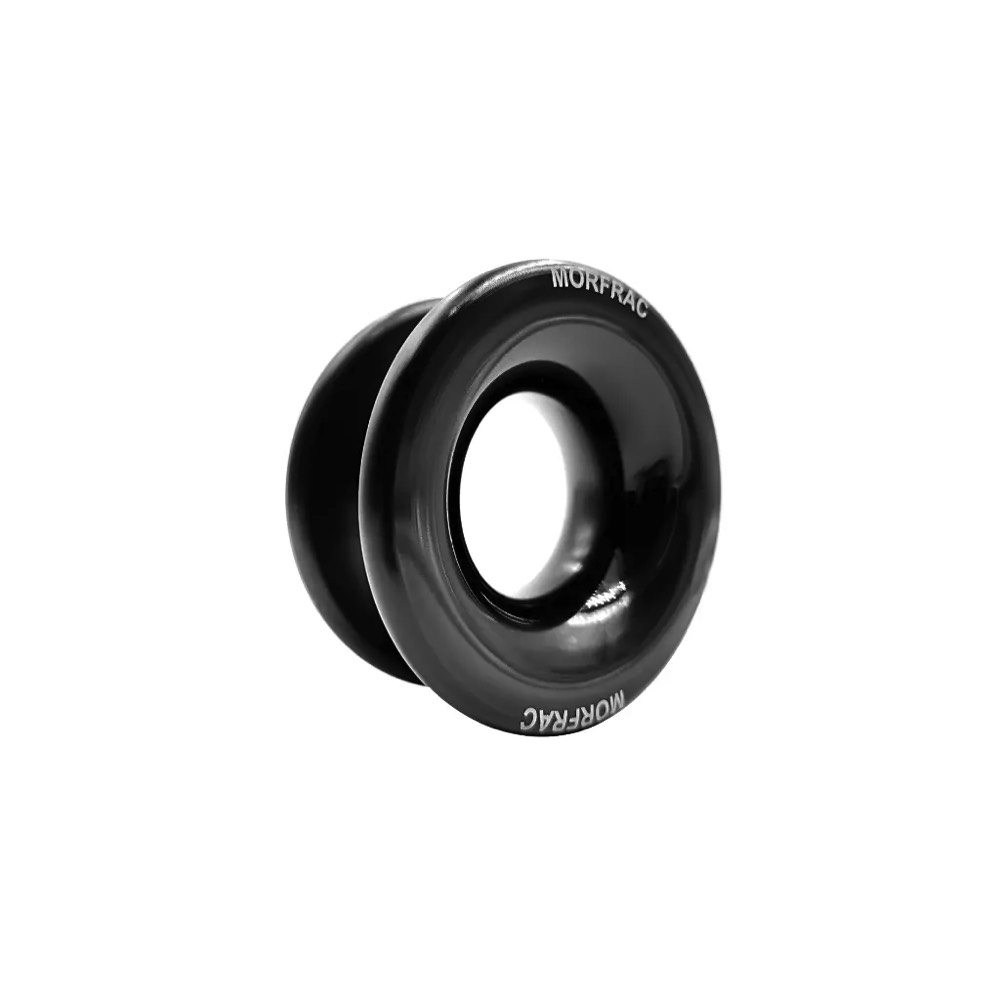

MORFRAC morfring Ø 70 mm – Low Friction Ring
Maximum capacity. Minimal complexity. The MORFRAC morfring Ø 70 mm is the largest in Morfrac’s premium friction ring range—purpose-built for high-load, large-line applications where space-saving design and ultra-reliable performance are key. With a 70 mm outer diameter, compatibility for lines up to 20mm, and a Safe Working Load of 4,700 kg, this ring is ideal for serious offshore, multihull, or superyacht applications.
Precision-machined from marine-grade aluminium and finished with Morfrac’s industry-leading hard anodising, the Ø 70 mm offers an exceptionally smooth, durable surface that minimises rope wear and friction—perfect for critical deflection and load-sharing scenarios.
Key Features:
- Hard Anodised Surface: Delivers ultra-low friction and outstanding durability, even under sustained heavy loads in harsh marine conditions.
- 20mm Rope Compatibility: Perfect for oversized halyards, sheet deflectors, structural rigging, or multi-purchase load distribution systems.
- Safe Working Load: Rated to an impressive 4,700 kg, making it one of the most capable friction thimbles available in its size category.
- Lightweight and Efficient: Offers a compact, weight-saving alternative to large pulley blocks with comparable strength and improved simplicity.
- No Moving Parts: Maintenance-free operation with no bearings or internal mechanisms—just clean, consistent performance.
- Versatile Integration: Ideal for use with soft shackles, textile loops, or spliced terminations in a variety of high-performance rigging systems.
The morfing Ø 70 mm is the ultimate solution for sailors and riggers seeking maximum load capacity, long-term reliability, and minimal hardware complexity—a true flagship of Morfrac’s friction ring innovation.
Spezifikationen
| Gesamtbreite (mm) | 32 |
| Empfohlener max. Leinendurchmesser (mm) | 20 |
| Innendurchmesser (mm) | 30 |
| Aussendurchmesser (mm) | 70 |
| Max. Außendurchmesser (mm) | 20 |
| SWL (kg) | 4700 |
| NBL (kg) | 9400 |
| A (mm) | 70 |
| B (mm) | 30 |
| C (mm) | 32 |
| Gewicht (g) | 112 |
