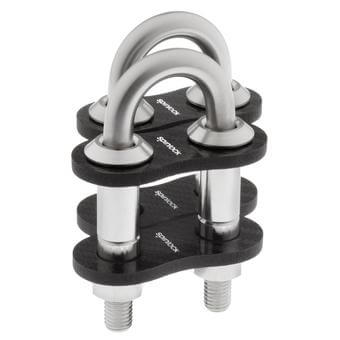

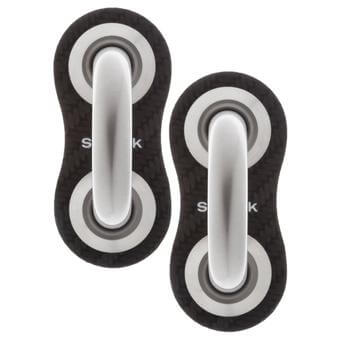

Spinlock PD Padeye 10C
High strength and low weight strong point with excellent strength to weight ratio.
- Carbon deck plates
- Carbon backing plates
- High quality 17-4PH stainless steel
- Excellent strength to weight ratio
- Increased through laminate bearing surfaces to minimise tearing
- Significantly reduced weight to previous padeye range
- No dissimilar material issues
- Improved shock loading resistance
- Compact foot print and the ability to ‘nest’ together
- Easily sealed
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Gesamtbreite (mm) | 70 |
| Gesamthöhe (mm) | 109 |
| Style | Fixed |
| Deckstärke max. (mm) | 50 |
| Deckstärke min. (mm) | 23 |
| SWL (kg) | 7600 |
| Gewicht (g) | 255 |
