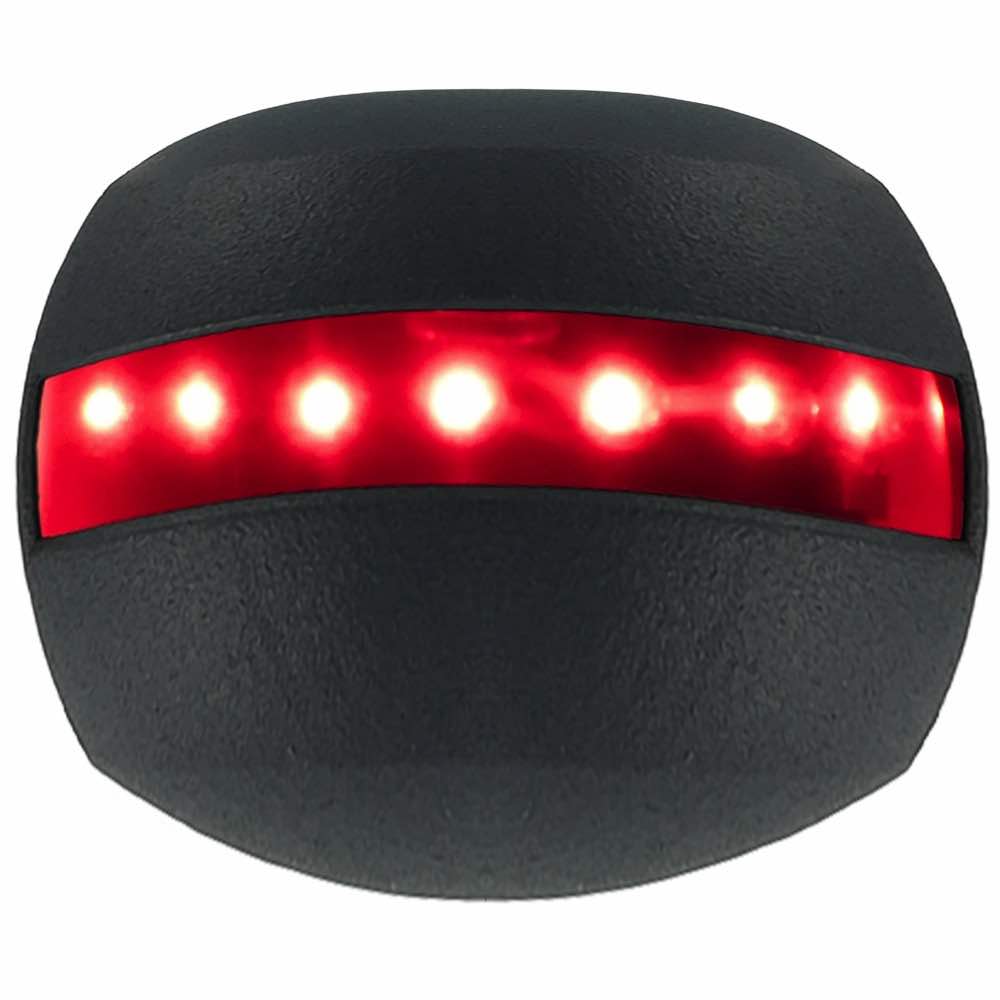

Mantagua RACING 2 NM Port Navigation Light – Vertical (Red 112.5°)
The Mantagua RACING Range is designed for competitive offshore and inshore sailing yachts, where reliability, compact design, and low weight are vital. Built to meet COLREG standards for vessels under 20 metres, these lights offer professional performance with the ruggedness and efficiency demanded by race crews.
The RACING 2 NM Port Navigation Light emits a 112.5° red beam with a 2 nautical mile visibility range, ensuring full compliance for port-side illumination. Its vertical mounting format allows easy installation on pushpits, balcony rails, or transoms, providing a streamlined and aerodynamic profile that reduces drag and exposure — ideal for performance yachts.
Each Mantagua RACING light features dual independent LED circuits with separate power feeds, providing redundancy that meets offshore racing regulations and ensures continued operation even in harsh conditions. The fully resin-sealed body guarantees complete waterproofing, vibration resistance, and long-term durability in saltwater environments.
This model is available in two colour variants — a black cover or a white cover — allowing sailors to match the light’s finish to the yacht’s design or hardware.
Rated IP67 waterproof, the unit operates on 9–30 VDC, consumes only 0.8 W, and is fully VHF/AIS compatible, ensuring zero interference with onboard communication and navigation systems.
Key features:
- Vertical-mount LED port navigation light for racing yachts
- Red 112.5° beam, 2 NM visibility (COLREG compliant)
- Dual LED circuits with separate power feeds for redundancy and race compliance
- Compact vertical design – ideal for pushpit or transom mounting
- Available with black or white cover options
- Fully resin-sealed housing – waterproof, vibration-proof, and shock-resistant
- Ultra-lightweight: approx. 140 g
- IP67 waterproof, UV and impact resistant
- Operating voltage: 9–30 VDC
- VHF/AIS friendly – no interference with onboard systems
- Extremely low power draw (0.8 W) – ideal for energy-efficient race installations
Spezifikationen
| Farbe | Schwarz oder Weiß |
| Beam angle (degrees) | 112.5 |
| Luminous Intensity (cd) | >5.4 |
| Gesamtbreite (mm) | 68 |
| Gesamttiefe (mm) | 34 |
| Power supply type | dc. |
| Sichtweite (NM) | 2 |
| Leistung (W) | 0,8 |
| Spannung unter Betrieb | 9-30 |
| Material | Epoxy resin |
| Höhe (mm) | 55 |
| Garantie (Jahren) | 2 |
| Wasserdichtigkeit | IP67 |
| Gewicht (g) | 140 |
