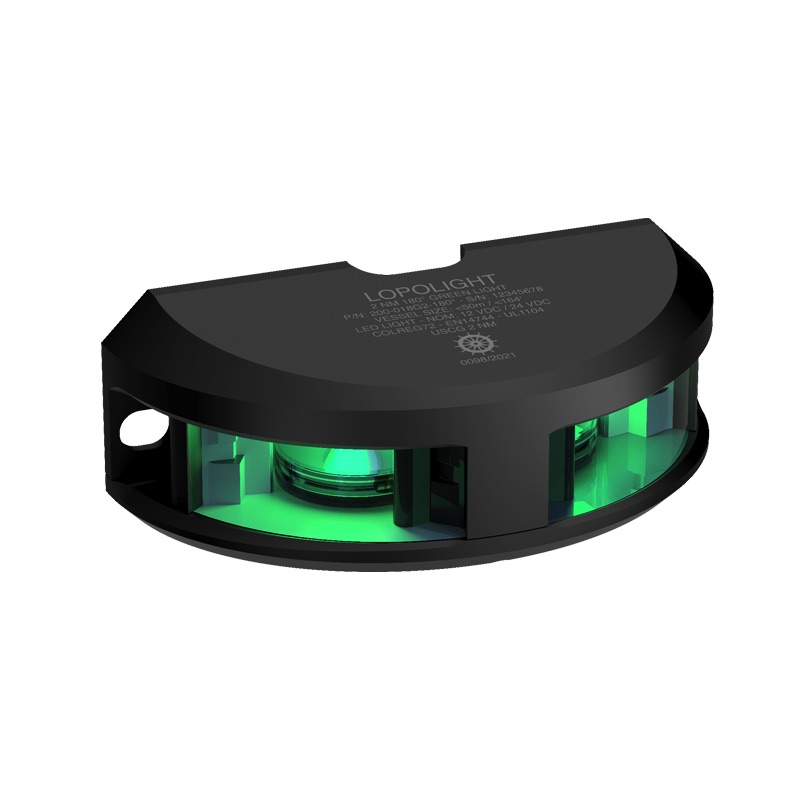

Lopolight 2NM 180° Green Light – 0.75m Cable (Silver or Black Anodised)
[Sector light – For vessels under 20m or specialist applications]
The Lopolight 2NM 180° Green Light is a precision-engineered LED sector light designed for vessels under 20 metres or for specialist navigation and signalling roles. It projects a sharp 180° green beam visible to 2 nautical miles, ensuring reliable compliance with international standards in compact form.
Built from anodised aluminium and available in Silver or Black finishes, the housing is both corrosion-resistant and rugged. Rated IP68, the epoxy-filled electronics are sealed against saltwater, UV exposure, and vibration.
The fixture is supplied with a 0.75-metre marine-grade cable, providing a neat and straightforward connection for shorter installations.
Key Features
- Suitable for vessels under 20 metres or signalling applications
- Emits a 180° green beam, visible to 2NM
- Horizontal mount – compact and durable for exposed positions
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine durability
- Supplied with 0.75m marine-grade cable
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72 and international standards
- Alternative versions available with 6m or 20m cable (Silver or Black anodised)
Spezifikationen
| Boat size (m) | 20-50M oder 12-20M oder Under 12M |
| Farbe | Schwarz oder Silber |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane oder Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 0.75m cable |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 145 |
| Current draw (mA @ 24VDC) | 60 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Sichtweite (NM) | 2 |
| Leistung (W) | 1.5 |
| Spannung unter Betrieb | 10-32 |
| Wasserdichtigkeit | IP68 |
| Gewicht (g) | 340 |
