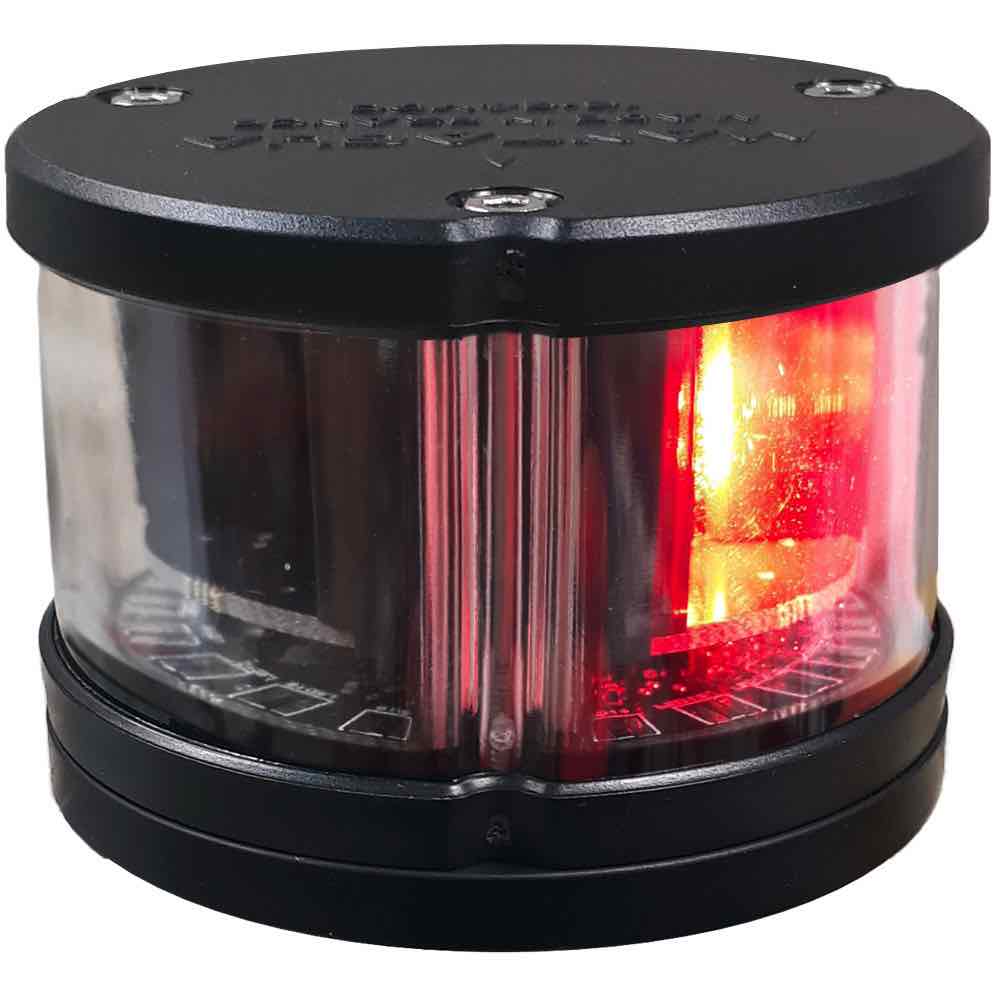

Mantagua NAVIPRO Compact 2 NM Port Light (Red 180°)
The Mantagua NAVIPRO Compact Range delivers professional-grade LED navigation lights in a sleek, low-profile design. Suitable for yachts, motorboats, and especially professional workboats up to 50 metres, these lights combine modern aesthetics, robust construction, and full COLREG compliance where applicable.
The NAVIPRO Compact 2 NM Port Light provides a 180° red beam, with a visibility range of 2 nautical miles. Unlike the standard 112.5° red port sidelight used on sailing and motor yachts under COLREG 72, a 180° red light is a specialist configuration, typically used on commercial vessels, pilot boats, or tugs where extended red light sectors are required. These lights are often installed in pairs (x2) to provide coverage for duplicated or sector-specific signalling in professional marine operations.
It is important to note that this is not a standard recreational navigation light, but rather a solution for vessels operating under special service requirements or commercial codes.
As with all NAVIPRO Compact models, it is Wheelmark certified (MED 60427/A0) and CE approved, ensuring compliance with stringent international safety standards. The unit is built with IP67 waterproofing, UV-resistant housing, and durable LED technology, guaranteeing very low power consumption, long service life, and robust reliability. In addition, NAVIPRO lights are tested to ensure zero interference with VHF and AIS systems, making them ideal for demanding professional use.
Key features:
- Part of the low-profile NAVIPRO Compact Range
- Red LED 180° half-sector light
- 2 NM visibility range
- Not a standard COLREG port light – intended for specialist or commercial use (e.g. tugs, pilot boats, duplicated signalling)
- Wheelmark certified (MED 60427/A0) and CE approved
- IP67 watertight and UV-resistant housing
- LED technology: low power draw, long service life
- Tested for zero interference with VHF and AIS systems
Spezifikationen
| Beam angle (degrees) | 180 |
| Width (mm) | 70 |
| Connection | 1m Cable |
| Luminous Intensity (cd) | >5.4 |
| Sichtweite (NM) | 2 |
| Leistung (W) | 3.24 |
| Höhe (mm) | 50 |
| Garantie (Jahren) | 2 |
| Wasserdichtigkeit | IP67 |
| Gewicht (g) | 190 |
| Certification | WHEELMARK 60427/A0 MED |
