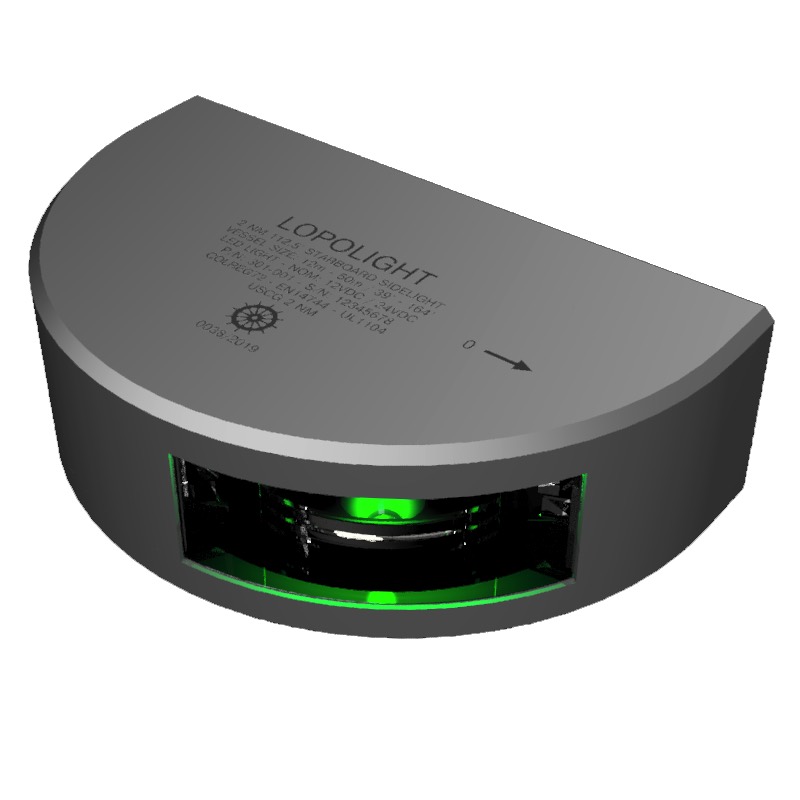

Lopolight 2NM 112.5° Starboard Sidelight – Vertical Mount, 6m Cable (Silver or Black Anodised)
[For vessels under 20m – LED navigation light]
The Lopolight 2NM Starboard Sidelight with 6-metre cable is a durable LED navigation light designed for vessels under 20 metres. Emitting a precise 112.5° green beam visible to 2 nautical miles, it ensures clear and compliant visibility for safe night navigation.
This vertical-mount light is engineered from anodised aluminium and is available in Silver or Black finishes, providing both corrosion resistance and a sleek profile. The compact form makes it ideal for mounting on topsides, pulpits, or other tight spaces. Rated IP68, its epoxy-sealed electronics protect against water ingress, vibration, and UV damage.
The 6-metre marine-grade cable allows flexible routing for taller hulls, complex wiring paths, or retrofit installations.
Key Features:
- Suitable for vessels under 20 metres
- 112.5° green beam, visible to 2NM
- Vertical mount – compact and space-efficient
- Available in Silver or Black anodised aluminium housing
- IP68 sealed for marine durability
- Supplied with 6m marine-grade cable for extended installation reach
- Low power draw – ~2 W at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative version available with 2.5m cable connection
- Installation guide
Spezifikationen
| Boat size (m) | 20-50M oder 12-20M oder Under 12M |
| Farbe | Silber oder Schwarz |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane oder Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 6m cable |
| Dimensions (mm) | 92,5 x 28 x 49,7 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 110 |
| Current draw (mA @ 24VDC) | 60 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Sichtweite (NM) | 2 |
| Leistung (W) | 1.4 |
| Spannung unter Betrieb | 10-32 |
| Garantie (Jahren) | 5 year limited warranty |
| Wasserdichtigkeit | IP68 |
| Gewicht (g) | 630 |
