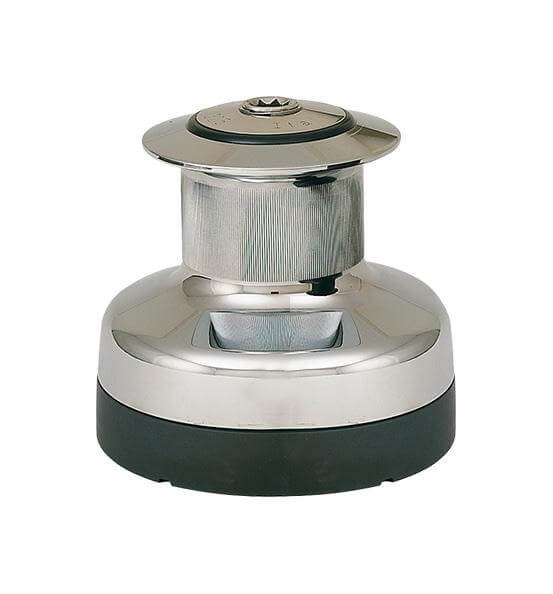

Specifications for Antal 60 2-Speed Plain-Top Chromed Bronze Winch
| Taille | 60 |
| Style | Plain-Top |
| Matériau | Poupée chromée |
| Line recovery per rotation - 1st gear (mm) | 85 |
| Line recovery per rotation - 2nd gear (mm) | 26 |
| Diamètre de l'embase | 224 |
| Ø tourelle (mm) | 105 |
| Hauteur (mm) | 211 |
| Vitesse (manuelle) | 2 vitesses |
| Garantie (année) | 3 |
| Vitesse 1 (X : 1) | 3,9 |
| Vitesse 2 (X : 1) | 12,9 |
| Puissance 1 (X : 1) | 18,7 |
| Puissance 2 (X : 1) | 61.2 |
| Poids (g) | 12600 |
Two Reduced Speed Winch
Quick and powerful operation is obtainable with the first reduced speed, then with increasing load, simply wind in the opposite direction the second gear and maximum power is automatically selected. Marine bronze is used for gears, AISI 316 stainless steel for central rod and roller bearings, CNC aluminium base, hard black anodized aluminium (AL) or chrome-plated (CH) drum.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.
Spécifications
| Taille | 60 |
| Style | Plain-Top |
| Matériau | Poupée chromée |
| Line recovery per rotation - 1st gear (mm) | 85 |
| Line recovery per rotation - 2nd gear (mm) | 26 |
| Diamètre de l'embase | 224 |
| Ø tourelle (mm) | 105 |
| Hauteur (mm) | 211 |
| Vitesse (manuelle) | 2 vitesses |
| Garantie (année) | 3 |
| Vitesse 1 (X : 1) | 3,9 |
| Vitesse 2 (X : 1) | 12,9 |
| Puissance 1 (X : 1) | 18,7 |
| Puissance 2 (X : 1) | 61.2 |
| Poids (g) | 12600 |
