Karver KMH Internal Mast Lock
Internal halyard lock demonstation video from Karver.
|
|
|
KA-KMH05_Karver Drawing Internal Mast Lock_001.pdf
Karver KMH 5T Internal Mast Lock Technical Drawing
|
|
|
|
KA-KMH05_Karver Drawing Internal Mast Lock Drill Guide_001.pdf
Karver KMH 5T Internal Mast Lock Drill Guide Technical Drawing
|
|
|
|
KA_Karver Brochure Locks EN_001.pdf
Karver Locks Catalogue
|

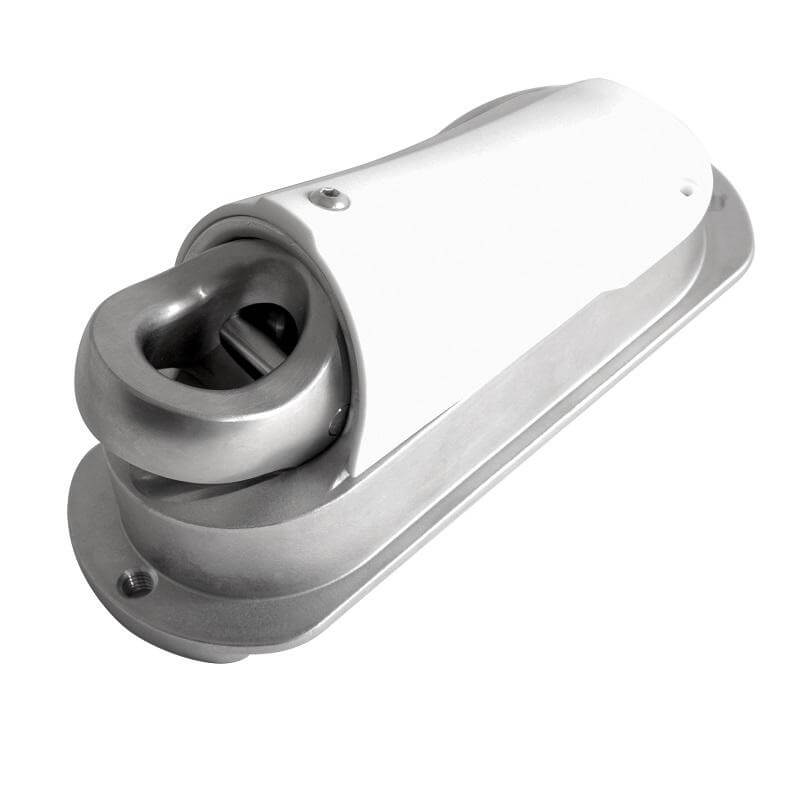

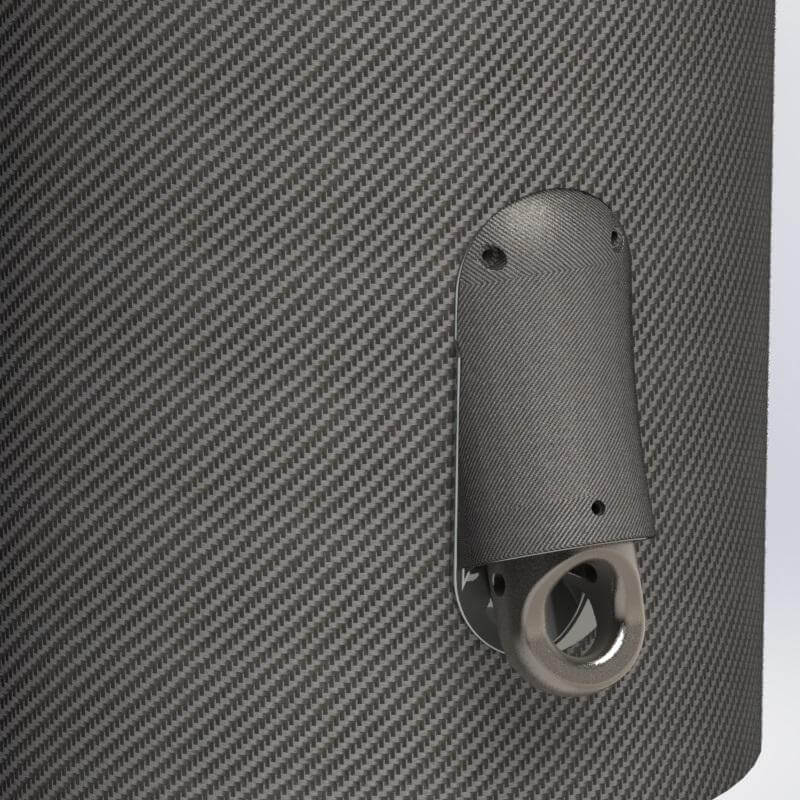

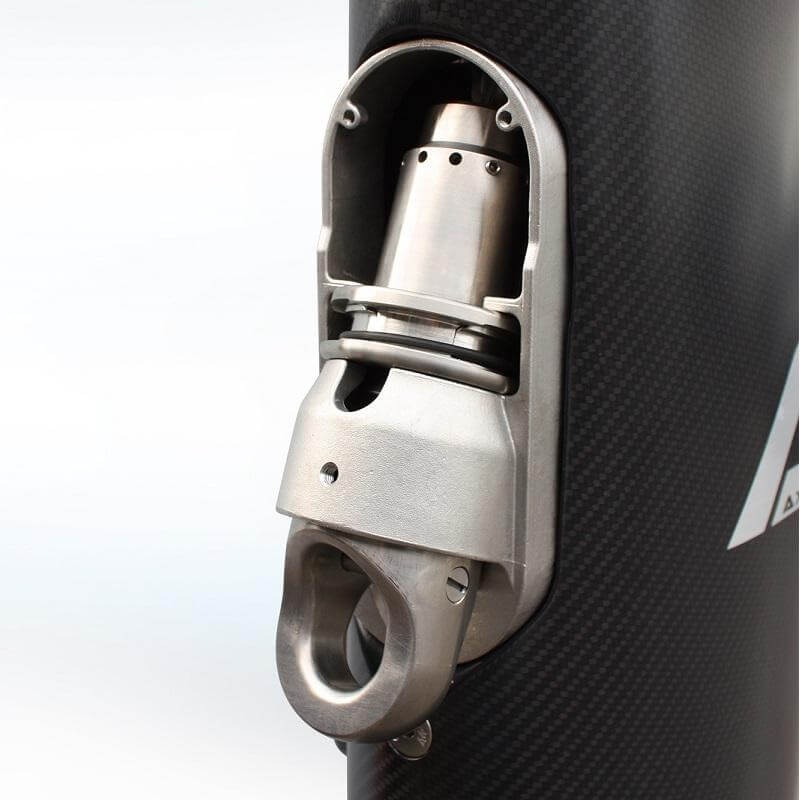

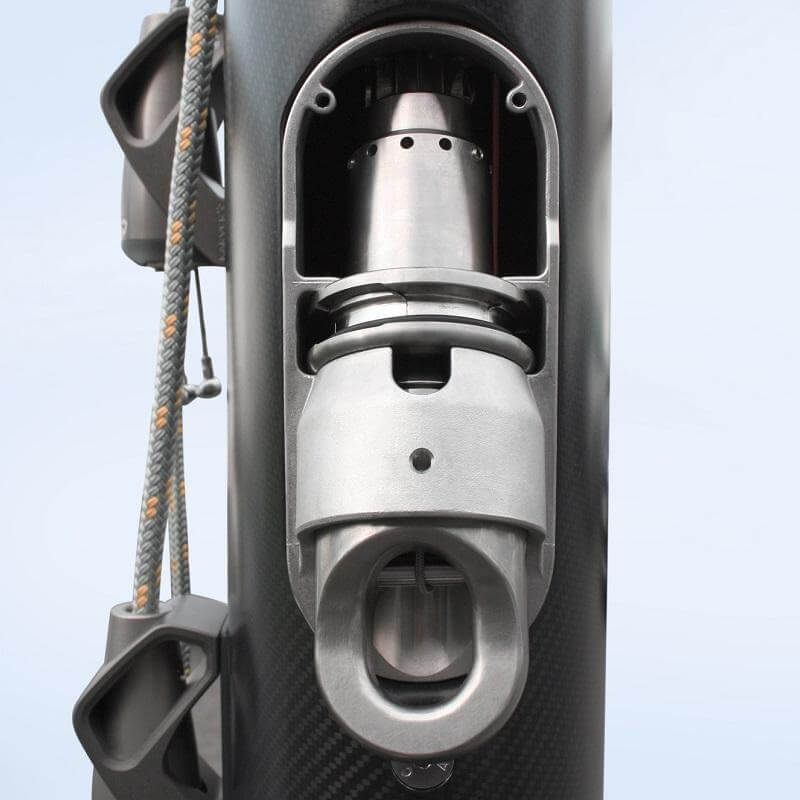

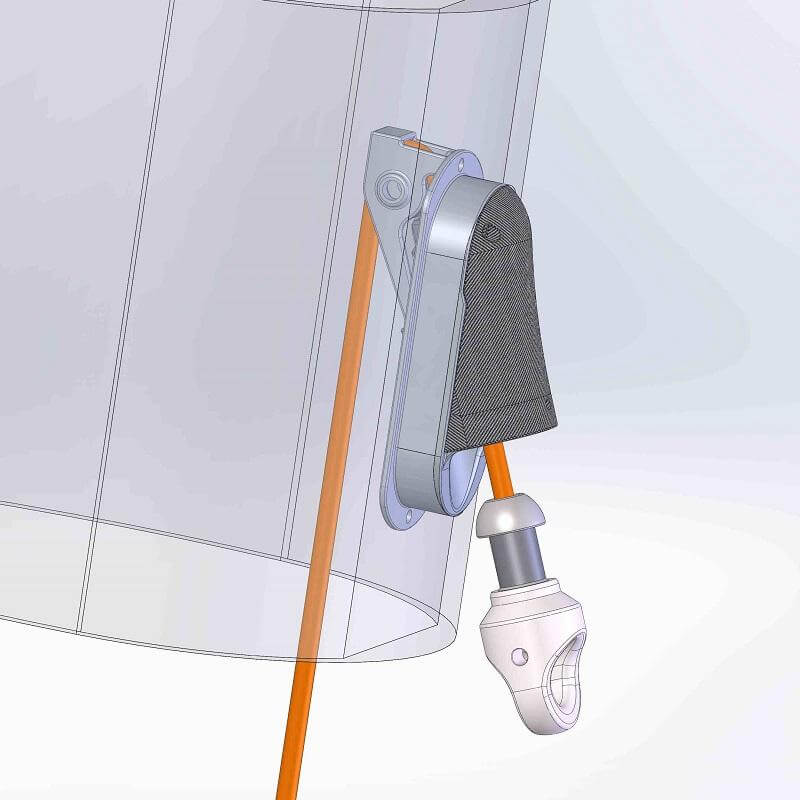

The Karver KMH Internal mast lock is a compact and lightweight locking device specifically for headsails. The mechanism is integrated into the mast and must be designed for, and installed by, the mast manufacturer. The Karver KMH lock is based on the tried and tested KFH locking mechanism and is designed to maximise available headsail luff length. This halyard lock does not swivel and does NOT require a trip-line - the halyard alone is used to lock and unlocked by the system. A simple, lightweight, non-structural cover offers opportunities for colour options, easy servicing and the ability to manually unlock the system. The unit is supplied as standard with a black cover.
Spezifikationen
| Empfohlener max. Leinendurchmesser (mm) | 6 |
| Mastausschnitt Höhe (mm) | 125,1 |
| Mastausschnitt Breite (mm) | 44 |
| Wandstärke (mm) | 25 |
| Material | Edelstahl |
| SWL (kg) | 5000 |
| NBL (kg) | 10000 |
| Gewicht (g) | 1090 |
