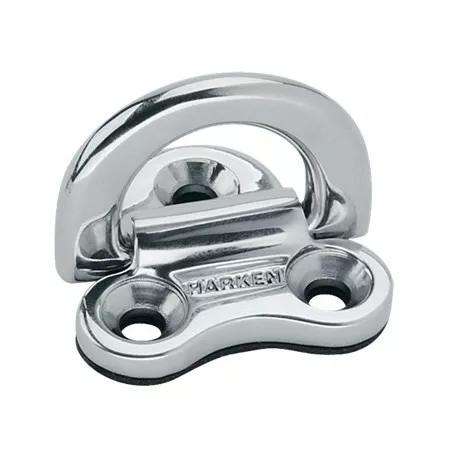

Specifications for Harken 6mm Folding Padeye
| Fastener Ø (mm) | 6 FH |
| Style | Pliable |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316 |
| Charge de travail (kg) | 1400 |
| Charge de rupture (kg) | 2800 |

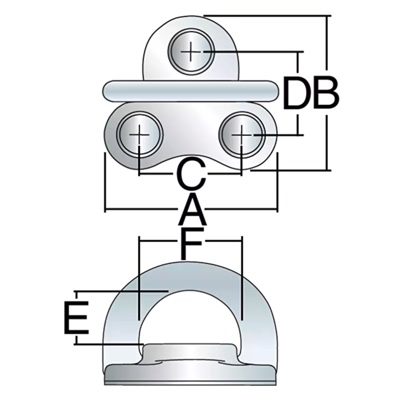

| A (mm) | 47 |
| B (mm) | 41.5 |
| C (mm) | 28 |
| D (mm) | 23 |
| E (mm) | 14.9 |
| F (mm) | 28 |
| Poids (g) | 78 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Folding padeyes keep your deck and passageways clear. They’re ready when you need to attach a snatch block or fender, but fold safely out of the way when you don’t.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Fastener Ø (mm) | 6 FH |
| Style | Pliable |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316 |
| Charge de travail (kg) | 1400 |
| Charge de rupture (kg) | 2800 |
| A (mm) | 47 |
| B (mm) | 41.5 |
| C (mm) | 28 |
| D (mm) | 23 |
| E (mm) | 14.9 |
| F (mm) | 28 |
| Poids (g) | 78 |
